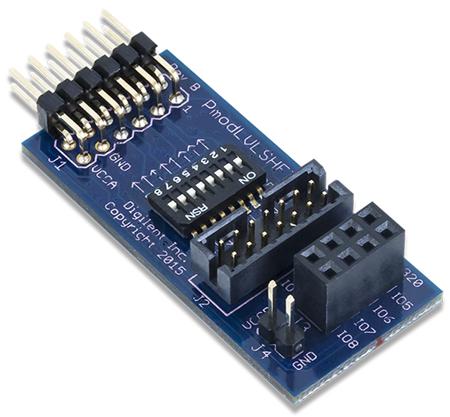

Pmod LVLSHFT Logic Level Shifter The Pmod LVLSHFT is a digital logic level shifter. For example, this module is ideal for users who want to supply +3.3V CMOS logic signals but have an alternate logic level output used for other applications, such as JTAG programming. • Translates logic signals between two user-supplied voltage levels
• 2 x 7-pin JTAG header
• 8 x DIP switches to set translation direction
• Logic supply voltage range: +1.8V to +5.5Vdc
• 12-pin Pmod connector with GPIO interface
• Dimensions: 46 x 20mm
