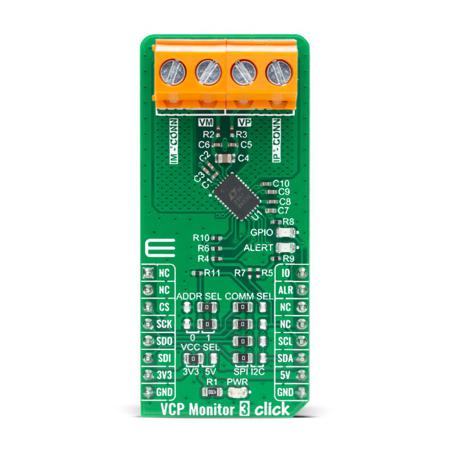

The MikroElektronika VCP Monitor 3 Click is a high precision Voltage, Current and Power measurement Click board with an input capable of taking up to 15V. It features the LTC2947, from Analog Devices, a high precision power and energy monitor with an internal sense resistor supporting up to ±30A. Three internal no latency delta-sigma ADCs ensure accurate measurement of voltage and current, with up to 0.5% voltage and 1% current accuracy while high-bandwidth analogue multiplication provides precise power measurement in a wide range of applications. Measures current = ±30A range
Voltage = 0V to 15V
Voltage accuracy = 0.5%
Current and Charge = 1% accuracy
