The ATM90E36A is a high-performance energy metering device for three-phase four-wire (3P4W, Y0) or three-phase three-wire (3P3W, Y or Δ) systems. It is also applicable in Data Acquisition Terminal. With the measurement and Fourier analysis functions, the ATM90E36A can also be used in power monitoring instruments which need to measure voltage, current, THD, DFT, mean power, etc.
Poly-phase solutions up to class 0.2 accuracy.
6000:1 dynamic range improves performance and reduces OEM's overall cost of manufacturing and bill of materials.
Lowest temperature drift in the industry for this type of device.
6000:1 dynamic range improves performance and reduces OEM's overall cost of manufacturing and bill of materials.
Lowest temperature drift in the industry for this type of device.

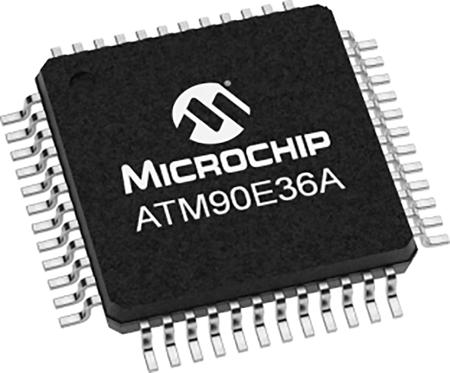

Microchip ATM90E36A-AU-Y ATM90E36A-AU-Y,Analogue Front End IC, 7-Channel 16 bit SPI, 48-Pin TQFP
Manufacturer:
Microchip
Manufacturer Part No:
ATM90E36A-AU-Y
Enrgtech Part No:
ET18605846
Warranty:
Manufacturer
£ 3.07
Checking for live stock
Number of ADCs:
1
Resolution:
16 bit
Interface Type:
SPI
Number of Channels per Chip:
7
Mounting Type:
Surface Mount
Package Type:
TQFP
Pin Count:
48
Dimensions:
7 x 7 x 1.05mm
Height:
1.05mm
Length:
7mm
Maximum Operating Supply Voltage:
3.6 V
Minimum Operating Supply Voltage:
2.8 V
