TE Connectivity Micro K Series PCB Automotive Relays
TE Connectivity Micro K series PCB automotive relays offer a wide voltage range and a limiting continuous current of 40 A. Typical applications include: lock control circuits, seat adjustment motors, window defoggers, starter solenoid switches, etc.
Features and Benefits
PCB assembly
Maximum continuous current 30A
Contact material AgSno2
SPCO
Dimensions: W12 x D12.9 x H9.9mm
Maximum continuous current 30A
Contact material AgSno2
SPCO
Dimensions: W12 x D12.9 x H9.9mm

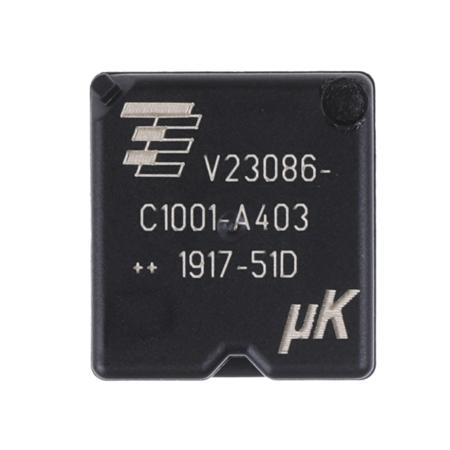

PCB Mount Automotive Relay, 12V dc Coil Voltage, 25A Switching Current, SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
V23086C1001A403 1393280-6
Enrgtech Part No:
ET13839585
Warranty:
Manufacturer
£ 1.90
Checking for live stock
Coil Voltage:
12V dc
Coil Resistance:
254Ω
Contact Configuration:
SPDT
Number of Poles:
1
Switching Current:
25A
Mounting Type:
PCB Mount
Terminal Type:
Through Hole
Height:
9.9mm
Length:
12.9mm
Depth:
12mm
Maximum Operating Temperature:
+105°C
Series:
K
