Mini ISO Automotive Relays - F4 Series
TE Connectivity F4 series Mini ISO automotive relays are available with quick connect plug-in terminals or as PCB mount relays. Protected against dust to IP54, the F4 series are designed for a variety of automotive applications.
Features and Benefits
Integrated components
Various contact arrangements and materials
Non-latching (monostable)
Applications:
Ignition lock
Lamp load (headlamps)
Exhaust emission control
ABS
Fuel pump
Electric Power Steering
Wiper Control
Car Alarm
Blower Fans

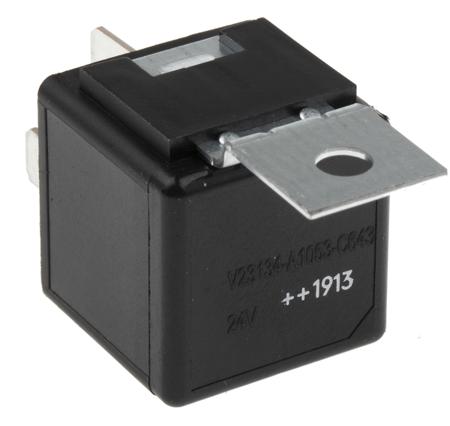

Plug In Automotive Relay, 24V dc Coil Voltage, 40A Switching Current, SPDT
Manufacturer:
TE ConnectivityManufacturer Part No:
V23134A1053C643 6-1393302-3
Enrgtech Part No:
ET14028147
Warranty:
Manufacturer
£ 11.04
Checking for live stock
Coil Voltage:
24V dc
Coil Power:
1.6W
Coil Resistance:
332Ω
Contact Configuration:
SPDT
Number of Poles:
1
Switching Current:
40A
Maximum Switching Voltage AC:
100V ac
Mounting Type:
Plug In
Terminal Type:
Quick Connect
Depth:
26.2mm
Maximum Switching Power DC:
500 W
Isolation Coil To Contact:
500V
