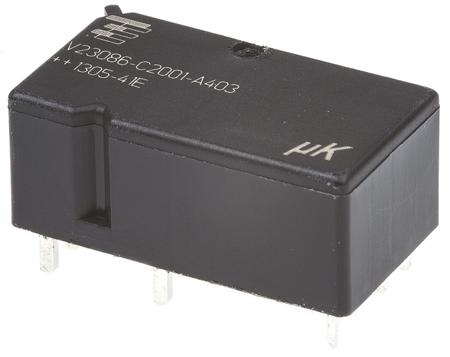

Micro Power K Series Twin PCB Relay
Two high current SPCO relays in a single housing
Through-hole PCB mounting
Maximum continuous current 30A
Typical automotive applications include rear window and seat heating, wiper and indicator control, motor management
Dimensions: W23.6 x D12.9 x H9.9mm
Through-hole PCB mounting
Maximum continuous current 30A
Typical automotive applications include rear window and seat heating, wiper and indicator control, motor management
Dimensions: W23.6 x D12.9 x H9.9mm
PCB Mount Automotive Relay, 12V dc Coil Voltage, 25A Switching Current, DPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
V23086C2001A403 1413009-9
Enrgtech Part No:
ET16892310
Warranty:
Manufacturer
£ 8.04
Checking for live stock
Coil Voltage:
12V dc
Coil Resistance:
181Ω
Contact Configuration:
DPDT
Number of Poles:
2
Switching Current:
25A
Mounting Type:
PCB Mount
Terminal Type:
Through Hole
Contact Material:
Silver Alloy
Depth:
12.9mm
Maximum Operating Temperature:
+105°C
Series:
K
Minimum Operating Temperature:
-40°C
