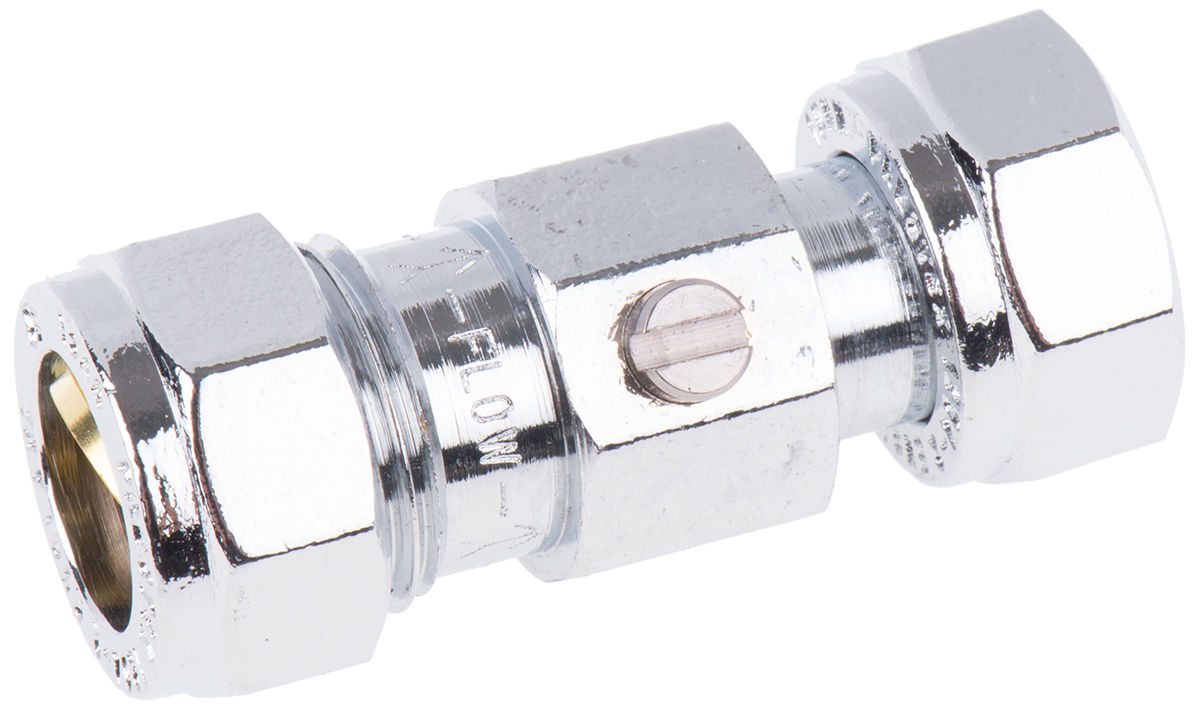

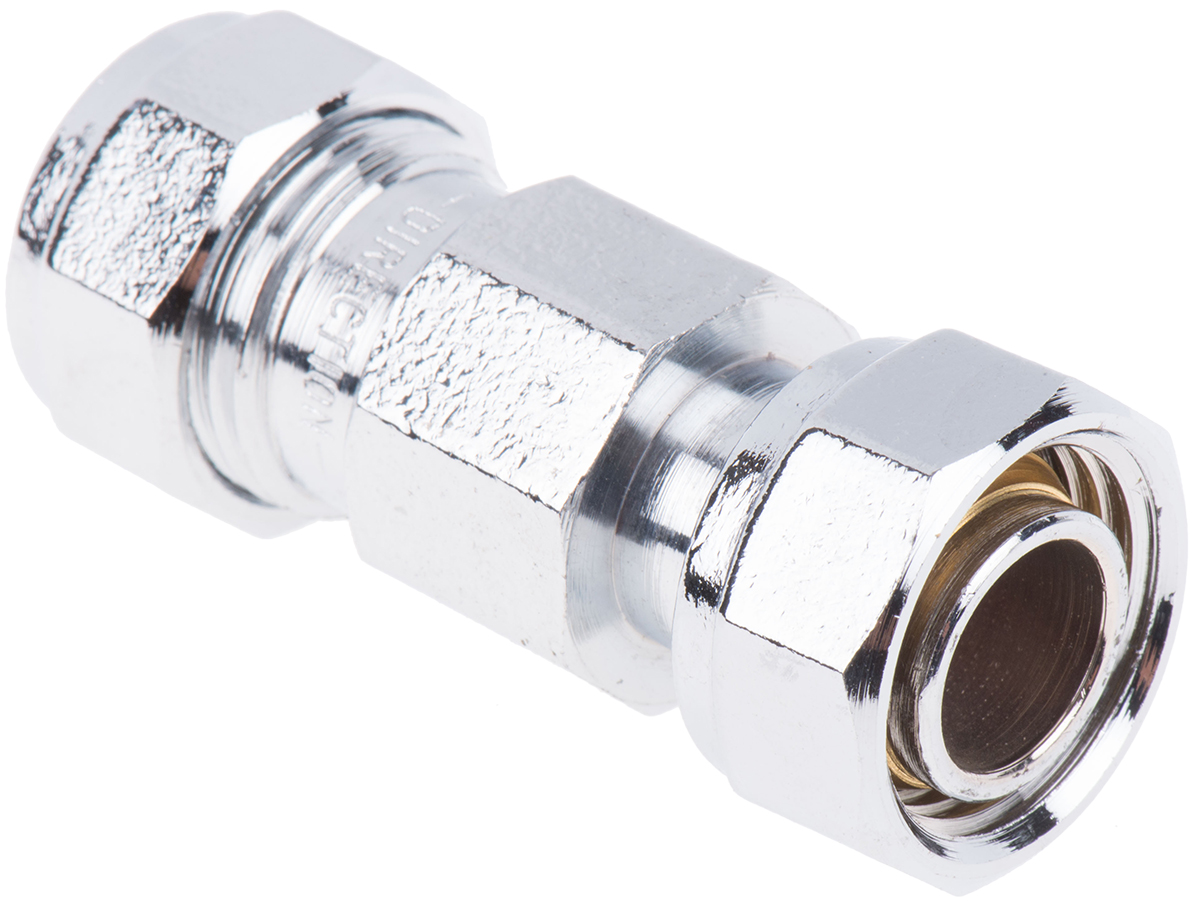

521007 Pegler Yorkshire , 15mm Reduced Bore Ball Valve Brass 1/2 in BSP 2 Way
521007 Pegler Yorkshire , 15mm Reduced Bore Ball Valve Brass 1/2 in BSP 2 Way

Chromium Plated Brass Servicing Valve WRC approved Brass chromium plated reduced bore ball valves manufactured to BS6675 Used for isolating hot or cold water systems, to carry out repairs or replacements, without affecting the rest of the system and without having to drain down large volumes of stored water Pressure rating 16 bar at 30°C (cold), 5 bar at 120°C (hot) Approvals WRc Standards BS 6675

Pegler Yorkshire , 15mm Reduced Bore Ball Valve Brass 1/2 in BSP 2 Way

Manufacturer:
Manufacturer Part No:
521007
Enrgtech Part No:
ET14121883
Warranty:
Manufacturer
£ 4.27
Checking for live stock
Thread Standard:
BSP
Attachment Type:
Compression
Maximum Working Pressure bar:
16bar
Maximum Working Pressure psi:
232psi
Compression Fitting Size:
15mm
Thread Size:
1/2in
Safe for Use With:
Water
Body Material:
Brass
Type:
Reduced Bore, 2 Way
Handle Type:
Lever
Ball Material:
Brass
pdf icon
Datasheet(Technical Reference)
