E2S Xenon Beacon - L101X This L101X by E2S is a compact and robust 5 Joule Xenon strobe beacon, which has been created and designed for a variety of signalling applications in different locations including fire, security and process control. The beacon is CPR compliant and approved for use in fire alarm signalling. Features and Benefits • The L101X features an automatically synchronised flash rate of 60 flashes per minute, with a user-selectable 90 flashes per minute and double-strike flash rate on DC voltage versions • With an ingress protection rating of IP66, the device is protected against dust and water • The back boxes are available with or without mounting lugs • The beacons can be stacked to provide a multi-signal unit and can be combined with both AlertAlarm and Senora audible signals • The Xenon tube lamp can be replaced by the user, with multiple selectable flash rates • Pluggable terminals • In and out terminals Applications Xenon beacons are an efficient signalling solution in a range of industrial applications. Available in a variety of colours, they can signal hazards, emergencies and more in environments such as: • Emergency exits • Warehouses and factories • Machinery • Walkways Approvals • CPD approval: 0786-CPD-21247 to EN54-23:2010. • VdS certificate: G211077 (24 & 48Vdc versions). • UL & cULs approved: General signalling use. • GOST-R certificate: POCC GB.JB05.H00144. E2S 2-13-010 Beacon

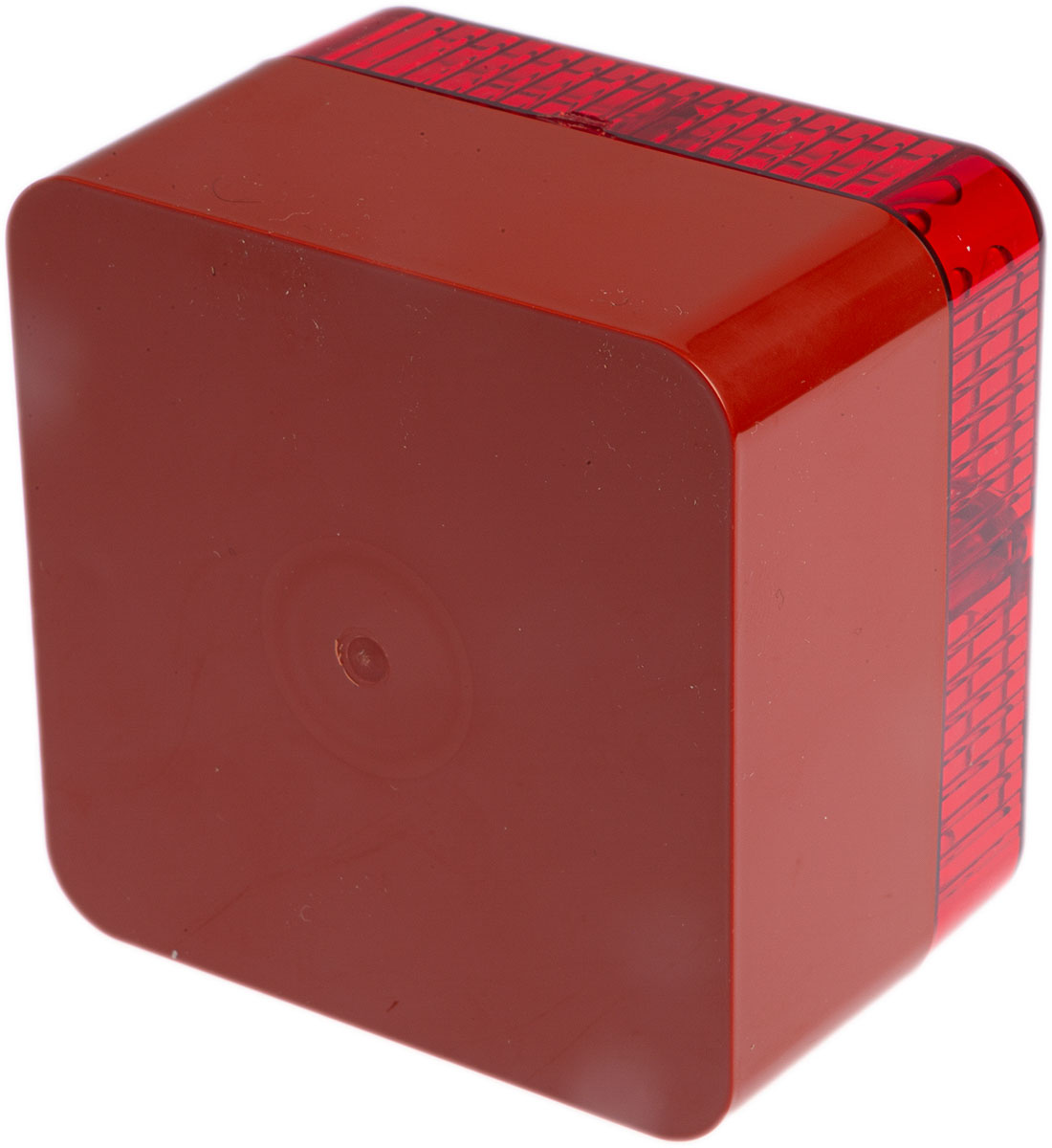

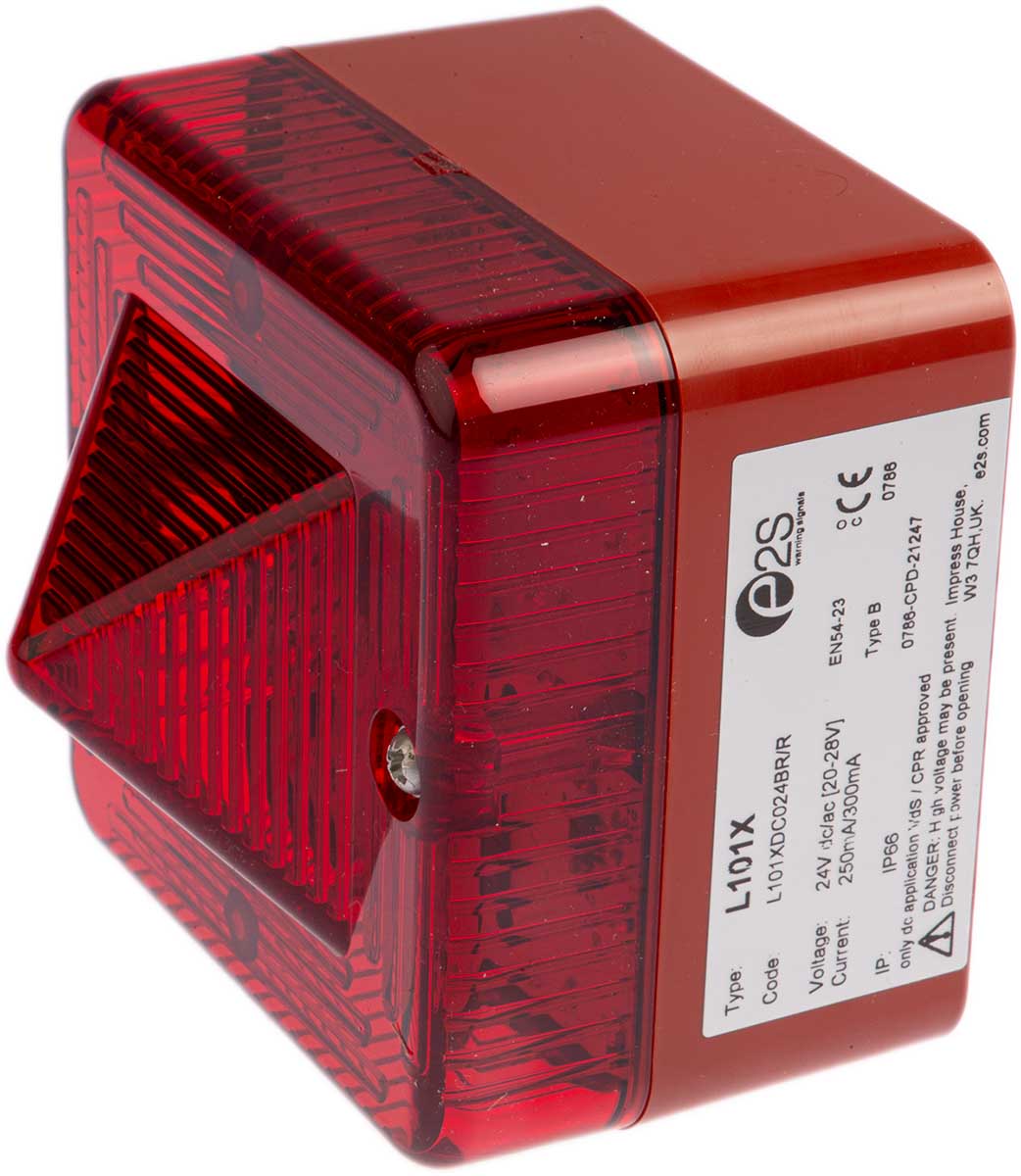

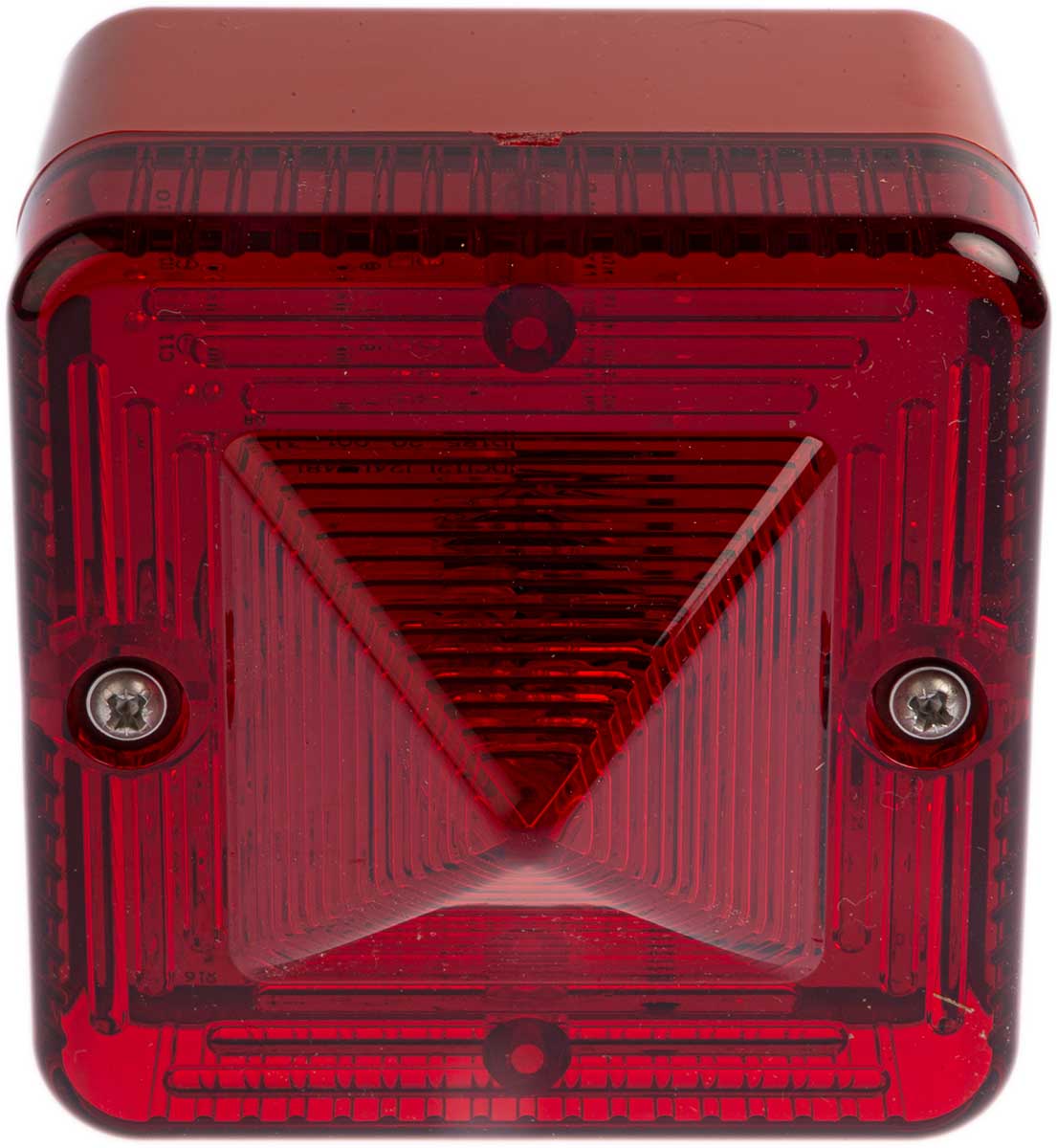

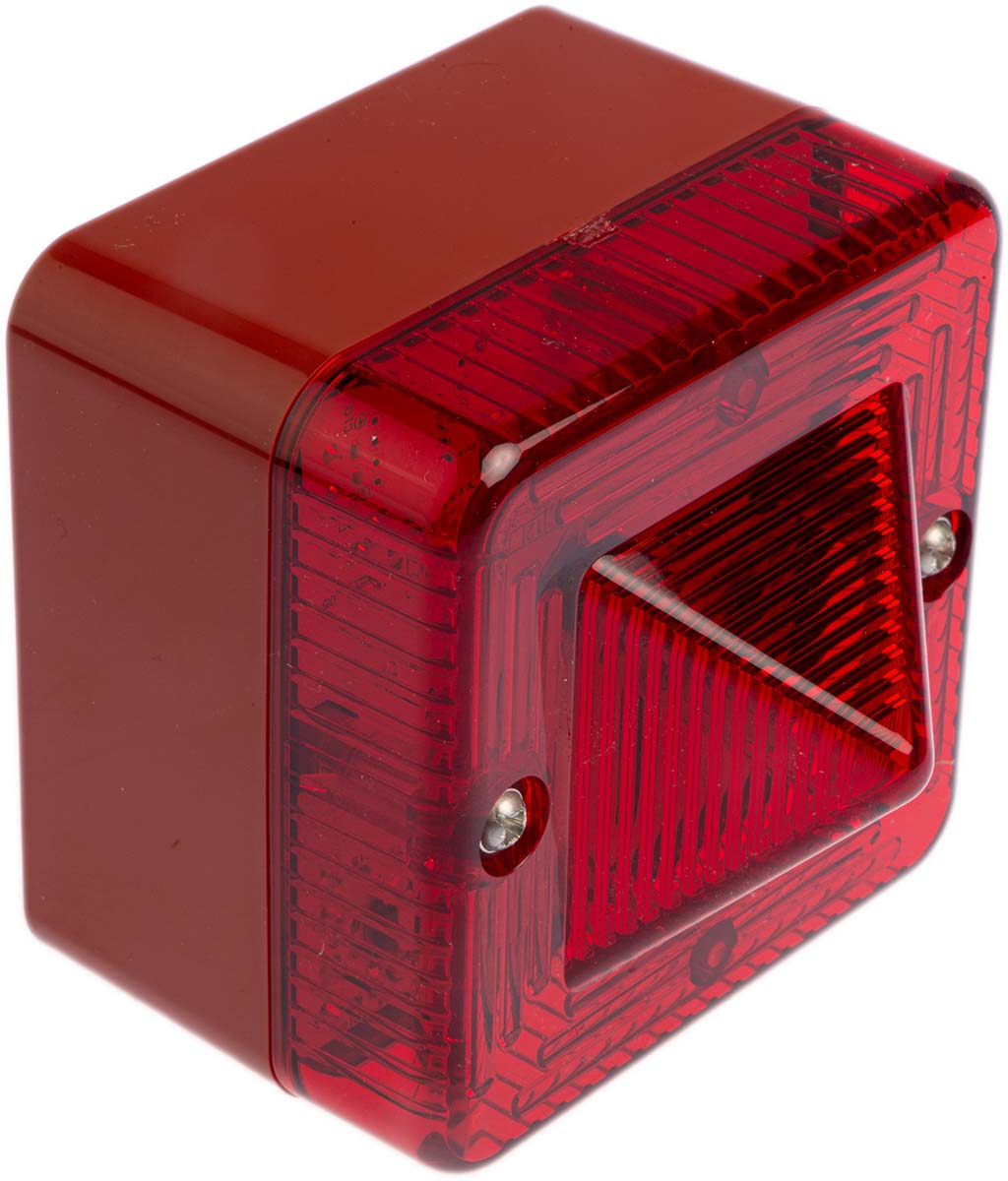

e2s L101X Series Red Flashing Beacon 230V ac/dc, Xenon Bulb Surface, IP66

Manufacturer:
Manufacturer Part No:
L101XDC024BR/R
Enrgtech Part No:
ET19535335
Warranty:
Manufacturer
local
Pre-order

Estimated Delivery Time: 7-13 weeks

pcs

Quantity
Unit Price (ex VAT)
1
£ 81.69
Order Today!
From: United Kingdom

Estimated Delivery Time: 7-13 weeks

Height:
83mm
Series:
L101X
Bulb Type:
Xenon
IP Rating:
IP66
Mount Type:
Surface
Lens Colour:
Red
Current Type:
DC
Light Effect:
Flashing
Product Type:
Beacon
Lamp Included:
Yes
Housing Colour:
Red
Current Consumption:
300mA
Standards/Approvals:
UL, VdS, cULs, EN54-23:2010, CPD, GOST
Maximum Supply Voltage:
230V ac/dc
Maximum Operating Temperature:
55°C
Minimum Operating Temperature:
-25°C
Height:
83mm
Series:
L101X
Bulb Type:
Xenon
IP Rating:
IP66
Base Width:
86mm
Base Length:
86mm
Lens Colour:
Red
Current Type:
DC
Light Effect:
Flashing
Lamp Included:
Yes
Housing Colour:
Red
Mounting Style:
Surface Mount
Supply Voltage:
24 V ac/dc
Current Consumption:
300mA
Maximum Temperature:
+55°C
Minimum Temperature:
-25°C
