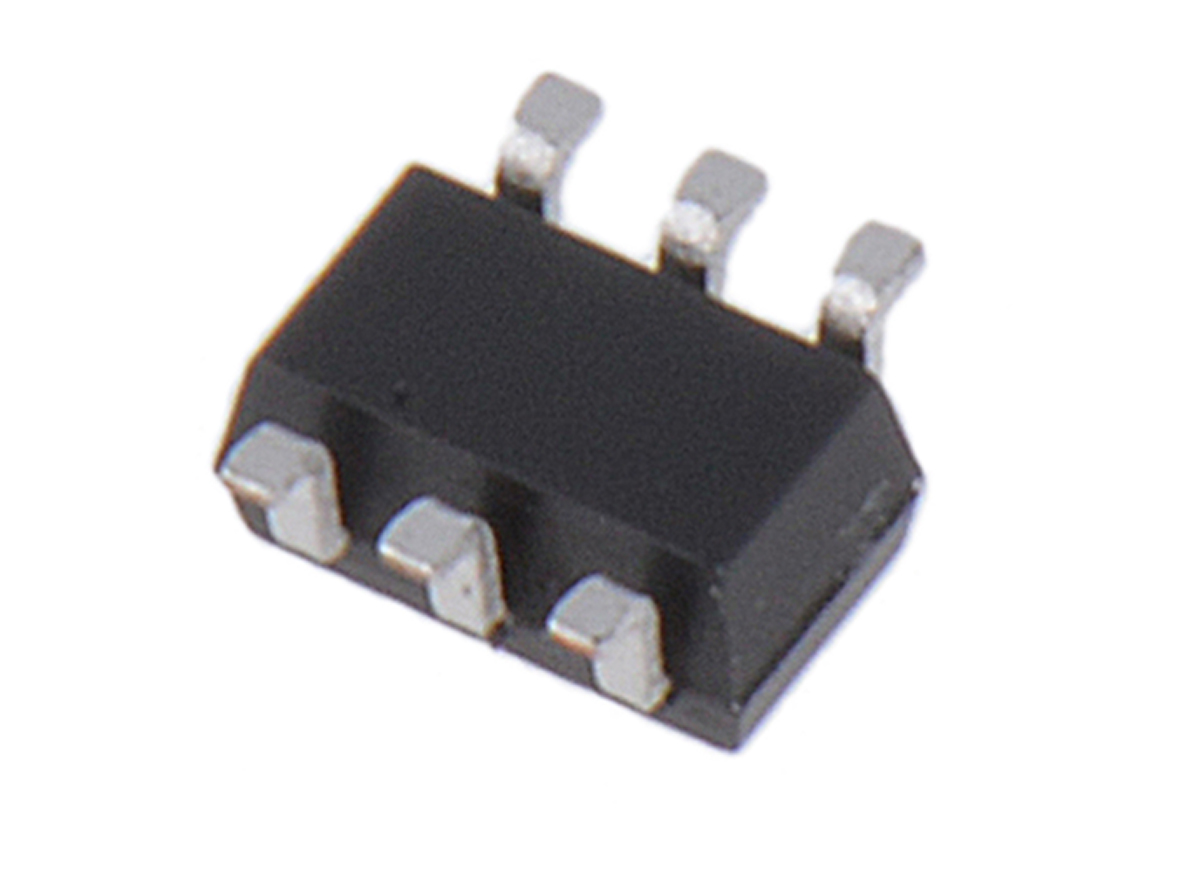

74HCT2G34GW,125, Dual-Channel Non-Inverting Single Ended Buffer, 6-Pin SC-88

Logic Family:

HCT

Logic Function:

Buffer

Number of Channels:

2

Schmitt Trigger Input:

No

Input Type:

Single Ended

Output Type:

Single Ended

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

SC-88

Pin Count:

6

Maximum High Level Output Current:

-5.2mA

Maximum Low Level Output Current:

5.2mA

Maximum Propagation Delay Time @ Maximum CL:

29 ns @ 50 pF

Maximum Operating Supply Voltage:

5.5 V

Dimensions:

2.2 x 1.35 x 1mm

Minimum Operating Temperature:

-40 °C

Minimum Operating Supply Voltage:

4.5 V

Length:

2.2mm

Propagation Delay Test Condition:

50pF

Maximum Operating Temperature:

+125 °C

Width:

1.35mm

Height:

1mm
