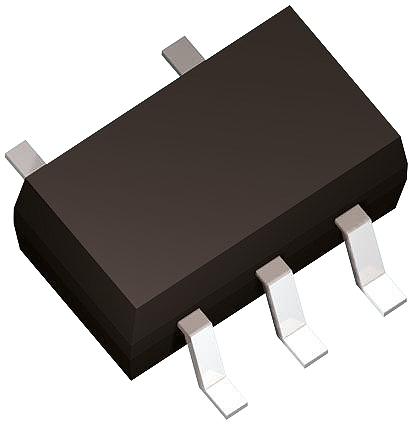

74LVC1G07GV,125 Non-Inverting Open Drain Buffer, 5-Pin SC-74A

Logic Family:

LVC

Logic Function:

Buffer

Number of Channels:

1

Schmitt Trigger Input:

No

Input Type:

Single Ended

Output Type:

Open Drain

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

SC-74A

Pin Count:

5

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

8.4ns

Dimensions:

3.1 x 1.7 x 1mm

Maximum Operating Supply Voltage:

5.5 V

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+125 °C

Length:

3.1mm

Height:

1mm

Width:

1.7mm

Minimum Operating Supply Voltage:

1.65 V
