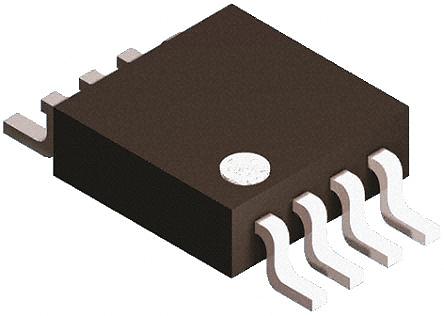

74LVC2T45DC,125, Quad-Channel Inverting 3-State Buffer & Converter Combination Circuit, 8-Pin VSSOP

Logic Family:

LVC

Logic Function:

Transceiver

Number of Channels:

4

Input Type:

Single Ended

Output Type:

3 State

Polarity:

Inverting

Mounting Type:

Surface Mount

Package Type:

VSSOP

Pin Count:

8

Maximum High Level Output Current:

-32mA

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

37.8ns

Dimensions:

2.4 x 2.1 x 0.85mm

Maximum Operating Supply Voltage:

5.5 V

Minimum Operating Supply Voltage:

1.2 V

Length:

2.4mm

Height:

0.85mm

Width:

2.1mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+125 °C
