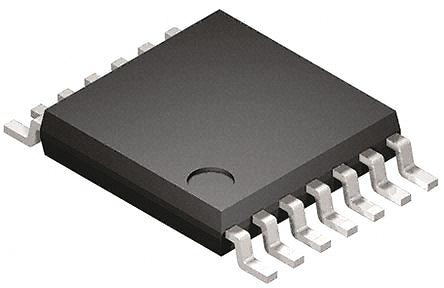

74LVT126PW,112, Quad-Channel Non-Inverting 3-State Buffer, 14-Pin TSSOP

Logic Family:

LVT

Logic Function:

Buffer

Number of Channels:

4

Schmitt Trigger Input:

No

Input Type:

TTL

Output Type:

3 State

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

TSSOP

Pin Count:

14

Maximum High Level Output Current:

-32mA

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

6.1 ns @ 50 pF

Maximum Operating Supply Voltage:

3.6 V

Dimensions:

5.1 x 4.5 x 0.95mm

Width:

4.5mm

Height:

0.95mm

Minimum Operating Supply Voltage:

2.7 V

Maximum Operating Temperature:

+85 °C

Propagation Delay Test Condition:

50pF

Length:

5.1mm

Minimum Operating Temperature:

-40 °C
