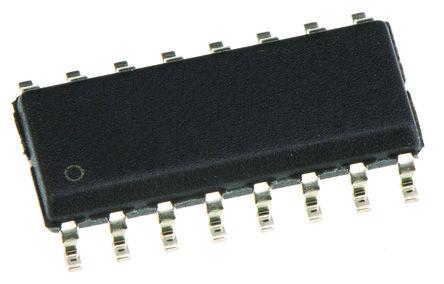

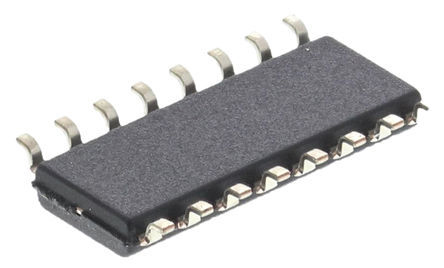

HEF4049BT,653 Inverting Single Ended Buffer, 16-Pin SOIC

Logic Family:

HEF

Logic Function:

Buffer

Number of Channels:

1

Input Type:

CMOS, DTL, TTL

Output Type:

Single Ended

Polarity:

Inverting

Mounting Type:

Surface Mount

Package Type:

SO

Pin Count:

16

Maximum High Level Output Current:

-3.6mA

Maximum Low Level Output Current:

24mA

Maximum Propagation Delay Time @ Maximum CL:

100 (Low to High) ns @ 50 pF, 70 (High to Low) ns

Dimensions:

10 x 4 x 1.45mm

Maximum Operating Supply Voltage:

15 V

Length:

10mm

Width:

4mm

Propagation Delay Test Condition:

50pF

Height:

1.45mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+85 °C

Minimum Operating Supply Voltage:

3 V
