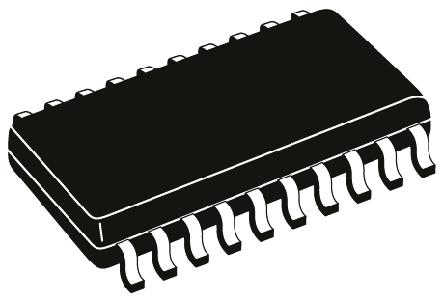

CBT3244AD,112, Bus Switch, 4 x 1:1, 20-Pin SSOP

Logic Family:

CBT

Configuration:

4 x 1:1

Number of Elements per Chip:

2

Number of Inputs per Chip:

8

Number of Outputs per Chip:

8

Maximum On Resistance:

15Ω

Maximum Quiescent Current:

3µA

Mounting Type:

Surface Mount

Package Type:

SSOP

Pin Count:

20

Maximum Low Level Output Current:

128mA

Maximum Propagation Delay Time @ Maximum CL:

0.25 ns @ 50 pF

Dimensions:

8.8 x 4 x 1.55mm

Minimum Operating Supply Voltage:

4.5 V

Bus Width:

8bit

Width:

4mm

Height:

1.55mm

Maximum Operating Supply Voltage:

5.5 V

Length:

8.8mm

Number of Output Options per Bit:

4

Maximum Operating Temperature:

+85 °C

Number of Input Options per Bit:

8

Minimum Operating Temperature:

-40 °C

Propagation Delay Test Condition:

50pF
