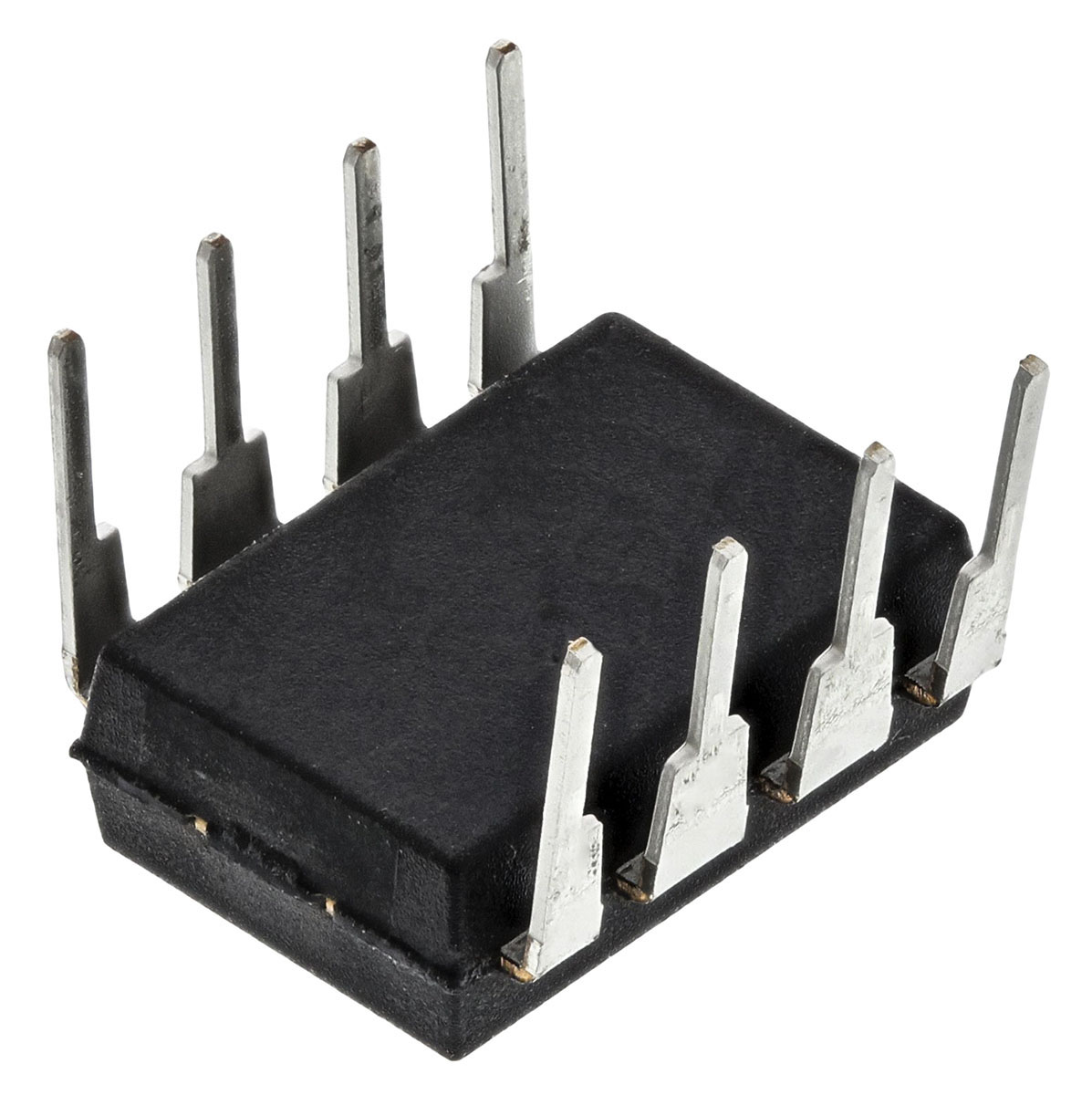

MCP2561FD-E/P, CAN Transceiver 2Mbps ISO 11898-2, ISO 11898-5, 8-Pin PDIP

Maximum Data Rate:

2 Mbps, 5 Mbps, 8Mbps

Number of Transceivers:

1

IC Type:

CAN Transceiver IC

Standard Supported:

ISO 11898-2, ISO 11898-5

Power Down Mode:

Standby

Maximum Supply Current:

70 mA

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

8

Dimensions:

10.16 x 7.11 x 4.95mm

Length:

10.16mm

Width:

7.11mm

Height:

4.95mm

Maximum Operating Supply Voltage:

5.5 V

Minimum Operating Supply Voltage:

4.5 V

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-40 °C
