MCP2021 LIN Transceivers
The Microchip MCP2021 is a LIN Transceiver that provides a bi-directional, half-duplex communication interface. Designed to provide a communications interface between a Microcontroller and a Local Interconnect Network (LIN) the MCP2021 complies to LIN 1.3, 2.1 and SAE J2602-2 specifications. Integrated is a 50mA Voltage Regulator with a 5 V or 3.3 V output, depending on the model.
Features
Compliant with LIN Bus 1.3, 2.1 and SAE J2602-2 Specifications
Supports Baud Rates up to 20 kBd
43 V Load Dump Protected
Low EMI
Wide Supply Voltage: 6 V to 18 V
Extended Temperature Range: -40 to +125°C
Interface to EUSART and USART
Automatic Thermal Shutdown
On-Chip Voltage Regulator
Two Low-power Modes
Supports Baud Rates up to 20 kBd
43 V Load Dump Protected
Low EMI
Wide Supply Voltage: 6 V to 18 V
Extended Temperature Range: -40 to +125°C
Interface to EUSART and USART
Automatic Thermal Shutdown
On-Chip Voltage Regulator
Two Low-power Modes

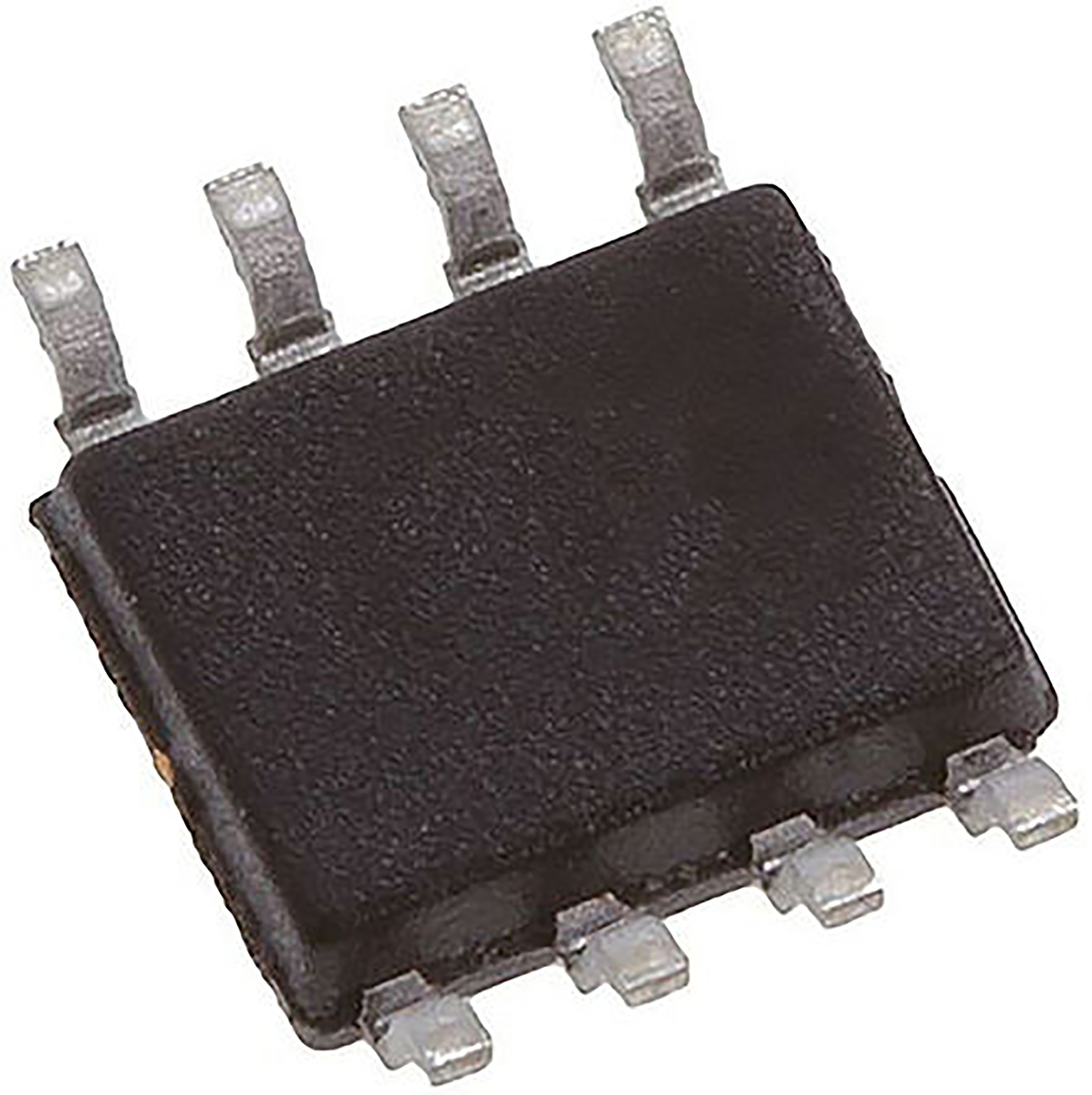

MCP2021-500E/SN, LIN Transceiver 20kBd LIN 1.3, LIN 2.0, LIN 2.1, SAE J2602, 8-Pin SOIC
Manufacturer:
Microchip
Manufacturer Part No:
MCP2021-500E/SN
Enrgtech Part No:
ET14062771
Warranty:
Manufacturer
£ 1.29
Checking for live stock
Maximum Data Rate:
20kBd
Number of Transceivers:
1
IC Type:
LIN Transceiver IC
Standard Supported:
LIN 1.3, LIN 2.0, LIN 2.1, SAE J2602
Power Down Mode:
Shutdown
Maximum Supply Current:
1 mA
Mounting Type:
Surface Mount
Package Type:
SOIC
Pin Count:
8
Dimensions:
4.9 x 3.9 x 1.25mm
Length:
4.9mm
Width:
3.9mm
