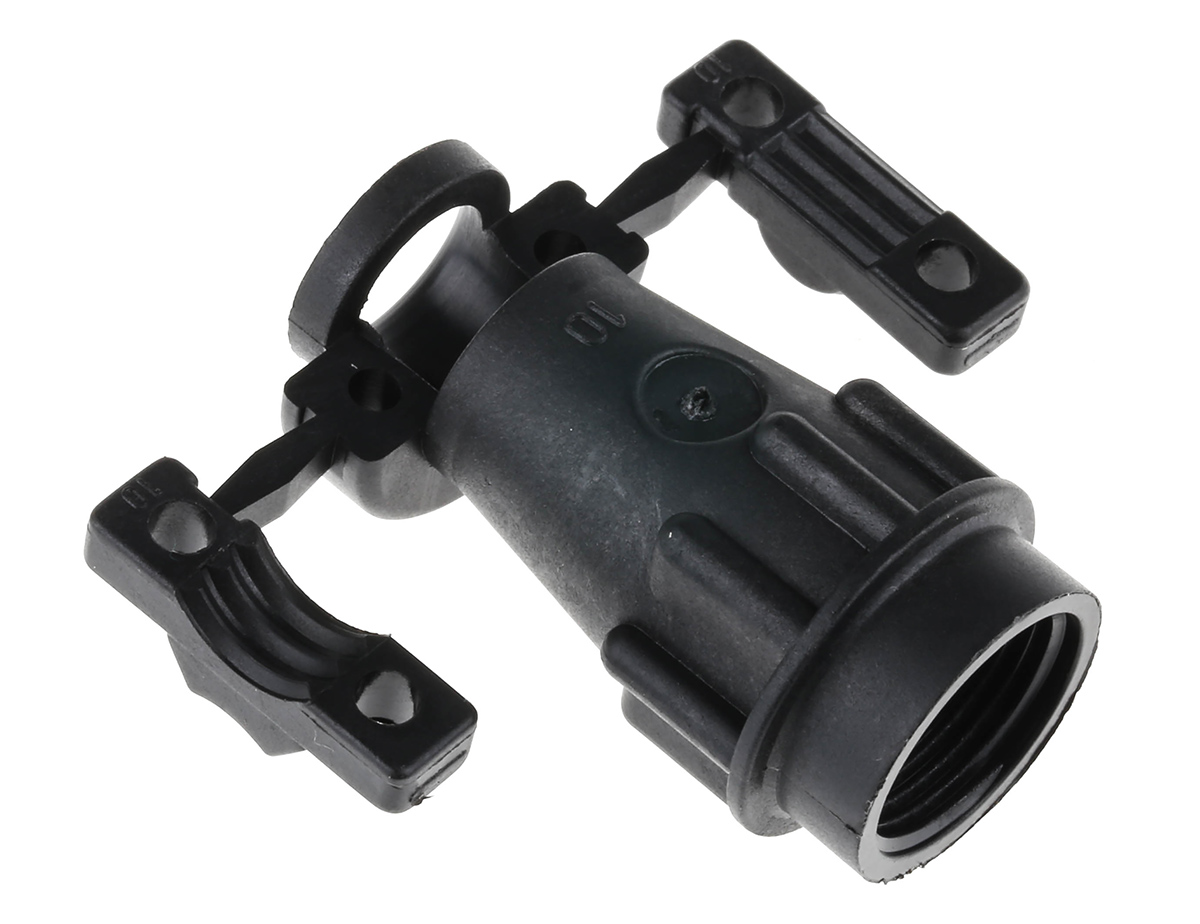

Souriau Connector Backshell The Souriau UTG series black connector backshell has shell size of 10. This is a plastic standard connector cable clamp with strain relief. It offers protection with screw cable clamping and a neoprene sealing gland insert which is pre-split in decreasing circular gradients. The length of the cable clamp is 40mm.
Sealok - Plastic
Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors, the Sealok range offers a cheaper alternative to traditional metal types. It is ideal for industrial application. These connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. It is available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. It is available in standard shell sizes. Two styles of backshell are also offered. Features and Benefits 500 mating cycles
Operating temperature ranges between 40°C and 105°C
Resistance to shock and vibration
Clamping range between 3mm and 8.7mm Applications Commercial applications
Military
