Width:
75mm
Height:
220mm
Weight:
350g
True RMS:
Yes
Battery Type:
1.5 V AAA
Display Type:
LCD

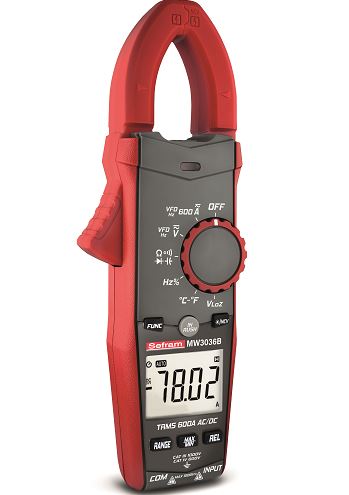

Model Number:
MW3036B
Power Source:
Battery
Product Type:
Clamp Meter
Functions Measured:
Diode, DC Current, Continuity, DC Voltage, Temperature, Frequency, AC, Capacitance, Resistance
AC Current Accuracy:
±2.5 % rdg + 5 Digits
AC Voltage Accuracy:
±1 % rdg + 5 Digits
DC Current Accuracy:
3% of reading + 10dgt
DC Voltage Accuracy:
0.5% of reading + 5dgt
Maximum Jaw Opening:
27mm
Standards/Approvals:
CE
AC Current Resolution:
0.01A
AC Voltage Resolution:
1V ac
DC Current Resolution:
0.01A
DC Voltage Resolution:
1 V dc
Safety Category Level:
Tensilica LX6
Temperature Resolution:
1°C
Safety Category Voltage:
1000V ac
Non-Contact Voltage Detector:
Yes
Maximum Operating Temperature:
28°C
Minimum Operating Temperature:
18°C
Maximum AC Current Measurement:
600A
Maximum AC Voltage Measurement:
1000V ac
Maximum DC Current Measurement:
600A
Maximum DC Voltage Measurement:
1000V dc
Maximum Resistance Measurement:
6mΩ
Maximum Temperature Measurement:
1000°C
Resistance Measurement Accuracy:
1-2% of reading + 3dgt
Temperature Measurement Accuracy:
1% of reading + 2dgt
