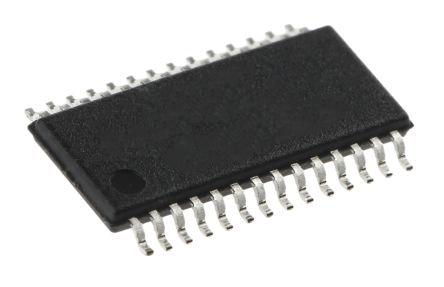

The Renesas Electronics frequency generator provides 4 differential HCSL output pairs. It can be used to drive PCIe Gen1/2, SATA and USB3.0 devices. The part can use either a 14.31818 MHz or 25 MHz crystal. It can also be driven by a reference input clock instead of a crystal. It provides outputs with cycle-to-cycle jitter of less than 50 ps and output-to-output skew of less than 35 ps. It generates common frequencies from 14.318MHz or 25MHz
It supports Serial-ATA at 100MHz
Two spread spectrum modes provided are -0.5% down spread and +/-0.25% centre spread
It has 31.5KHz spread modulation rate
Unused outputs may be disabled in either driven or Hi-Z state for power management
I-temp version available which supports embedded applications
