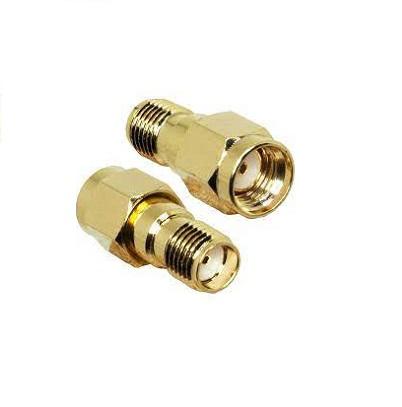

The Linx RP-SMA Plug to SMA Jack adapter is made of brass with gold finish. It has frequency range of 0 to 18 GHz, 50 Ω impedance, 5000 MΩ(min) insulation resistance and 750 V RMS voltage rating. It has 1/4in-36 2B threaded coupling on connector A and 1/4in-36 2A. It is most often used in testing and evaluation of products. It has free hanging (in-line) mounting style and interface in accordance with MIL-STD-348A. Temperature range of -65°C to +165°C
Silicon rubber gasket on connector A
Gold finished centre contact
Straight body style
