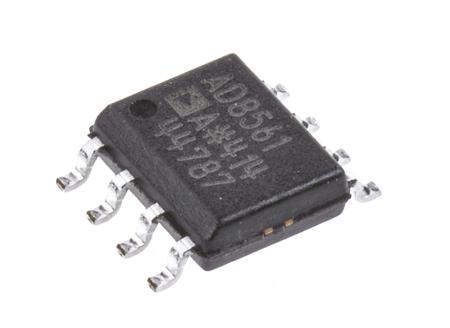

AD8561ARZ , Comparator, Complementary O/P, 5 V, 9 V 8-Pin SOIC

Comparator Type:

General Purpose

Mounting Type:

Surface Mount

Package Type:

SOIC

Power Supply Type:

Dual, Single

Output Type:

Complementary

Number of Channels per Chip:

1

Pin Count:

8

Typical Single Supply Voltage:

5 V, 9 V

Dimensions:

5 x 4 x 1.5mm

Length:

5mm

Width:

4mm

Height:

1.5mm

Typical CMRR:

85dB

Typical PSRR:

65dB

Typical Dual Supply Voltage:

±3V

Minimum Operating Temperature:

-40 °C

Typical Voltage Gain:

69.54 dB

Maximum Operating Temperature:

+85 °C
