Single Emergency Stop Pull-to-reset, designed to prevent accidental operation Lockable version is padlockable in the actuated position to prevent restart Approvals II 2 G EEx e d IIC T6 Bartec Hazardous Area Control stations for Zones 1 and 2 made from anti-static and impact-resistant polymer. Normally closed contacts are positive break Fitted with two terminals each side of contacts for loop-in applications Switching capacities: 250V a.c./16A (AC12); 230V a.c./10A (AC15); 24V d.c./1A (DC13) and 110V d.c./0.5A LED lamps (on stations with indicators) operate from 24 to 48V d.c. or 24 to 230V a.c. Ingress protection to IP66/67 Reduced side walls to allow easy access to switch and lamp modules Units can be joined together to form pendants or larger control stations by using a coupler kit Terminals: 0.5 to 2.5mm 2 conductors Two earth terminals fitted as standard in each unit Cable entry M20 x 1.5mm (bottom face)

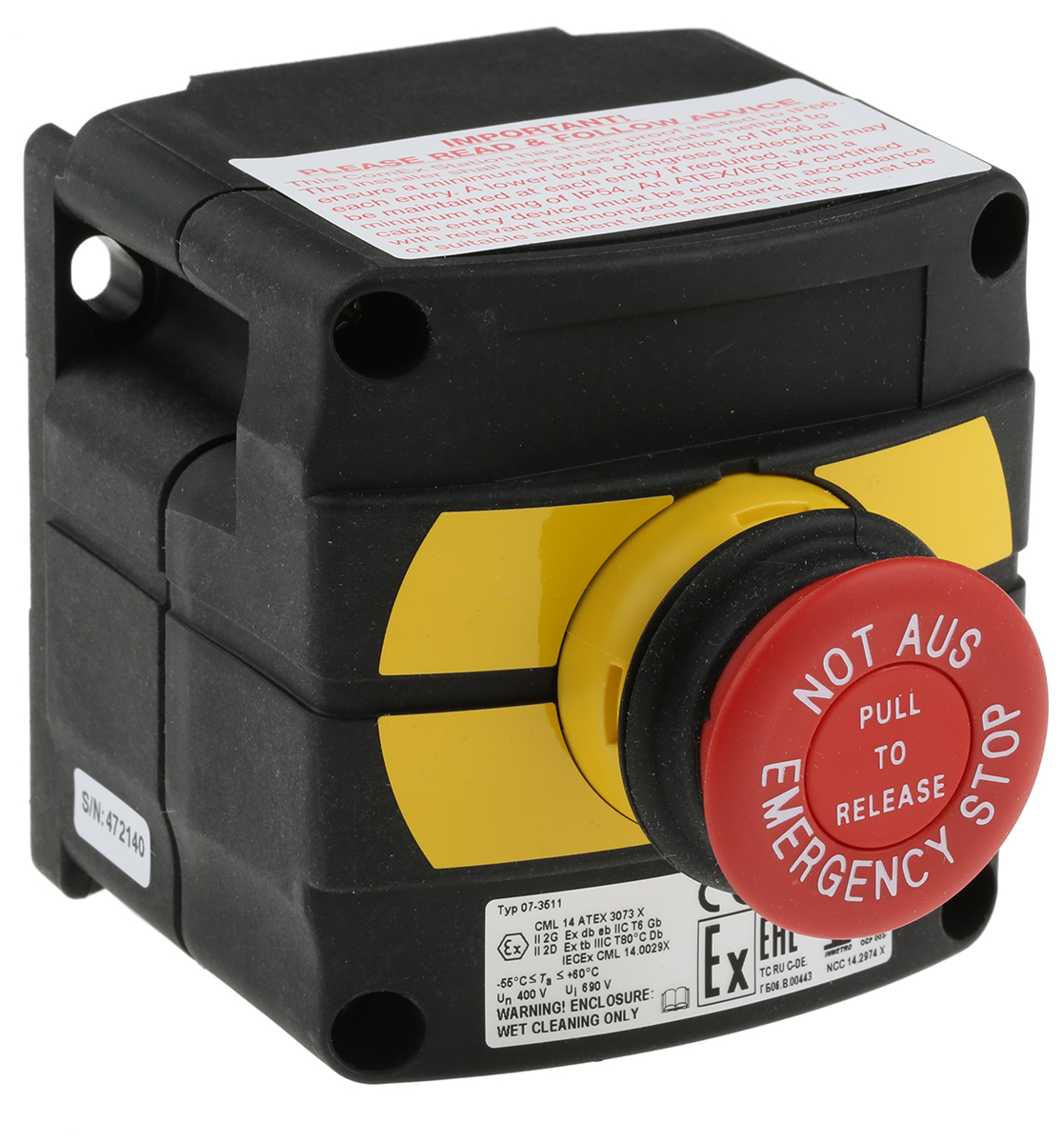

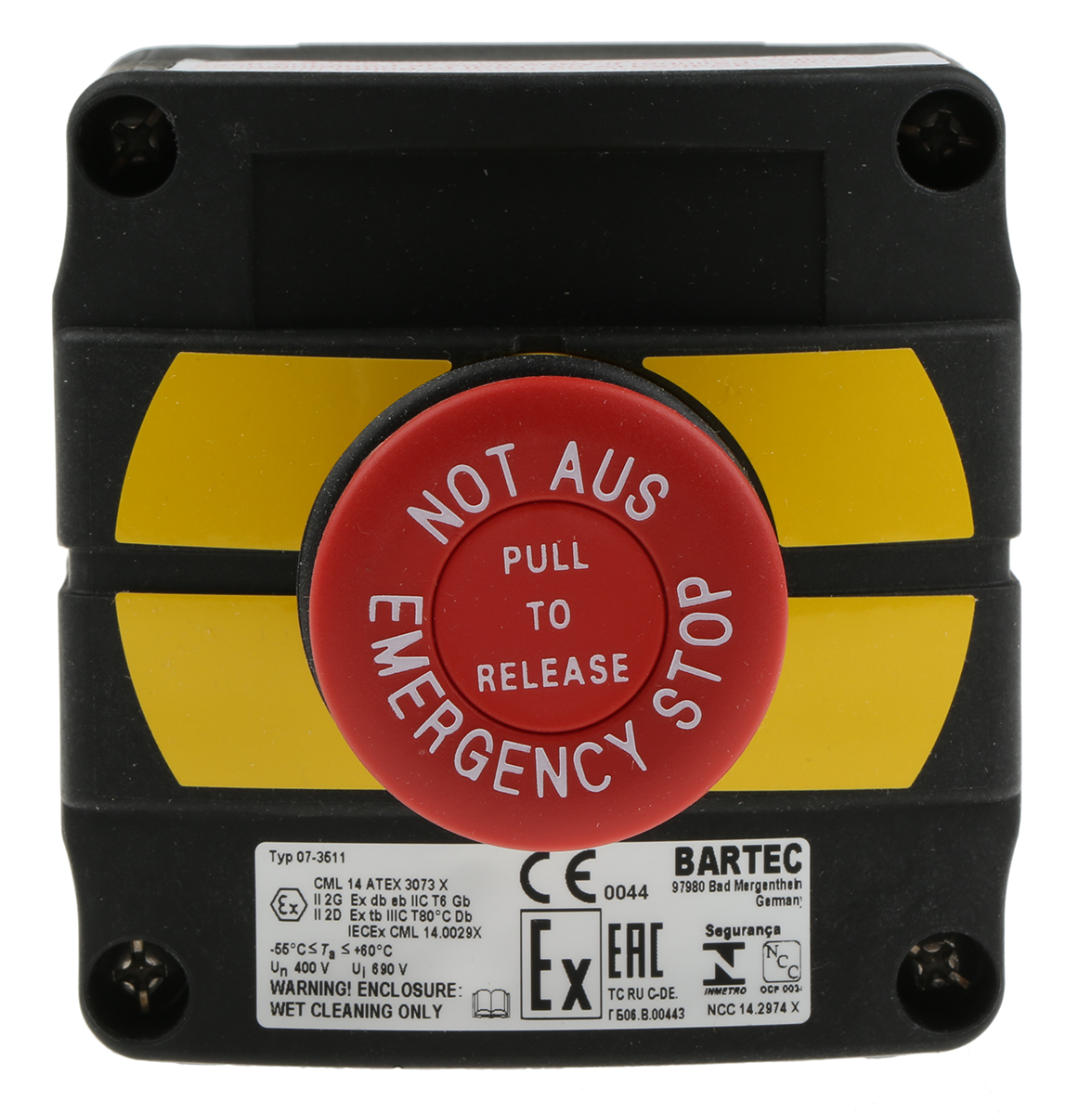

Bartec 07-3511-10N84 ComEx NO/NC Control Station Switch, IP66, IP67 Black Thermoplastic +60°C -55°C Red Emergency Stop

Manufacturer:
Manufacturer Part No:
07-3511-10N84
Enrgtech Part No:
ET13796702
Warranty:
Manufacturer
£ 119.51
Checking for live stock
Maximum DC Voltage:
110V
Maximum AC Voltage:
250V
Minimum Operating Temperature:
-55°C
Maximum Current:
16A
IP Rating:
IP66, IP67
Series:
ComEx
Push Button Marking:
Emergency Stop
Contact Configuration:
SPDT
Hazardous Area Certification:
ATEX
Push Button Colour:
Red
Enclosure Colour:
Black
Cutout Diameter:
22mm
Maximum Operating Temperature:
+60°C
Enclosure Material:
Thermoplastic
pdf icon
ComEx Control Station(Technical Reference)
pdf icon
Machine Guarding and Safety Range Overview(Technical Reference)
pdf icon
3 Standard Impact Resistant COMEX Enclose Data Sheet(Technical Reference)
pdf icon
Declaration of Conformity(Technical Reference)
