Aluminium Enclosed Pushbutton Stations
Pull to reset push buttons all with coverable flaps to prevent inadvertent reset
Heavy duty die-cast aluminium enclosure
Suitable for indoor or outdoor applications
Stock no. 310-3972 features a lockable flap which is padlockable and has to be unlocked to reset push button, padlock holes 2x14mm allow several padlocks to be fitted
Ingress protection to IP65
1 x M20 tapped conduit entry
Screw terminal, block type contacts cable size 2x2.5mm² maximum
Standards: BS EN 60947-5-1, BS EN 60947-5-5
Heavy duty die-cast aluminium enclosure
Suitable for indoor or outdoor applications
Stock no. 310-3972 features a lockable flap which is padlockable and has to be unlocked to reset push button, padlock holes 2x14mm allow several padlocks to be fitted
Ingress protection to IP65
1 x M20 tapped conduit entry
Screw terminal, block type contacts cable size 2x2.5mm² maximum
Standards: BS EN 60947-5-1, BS EN 60947-5-5

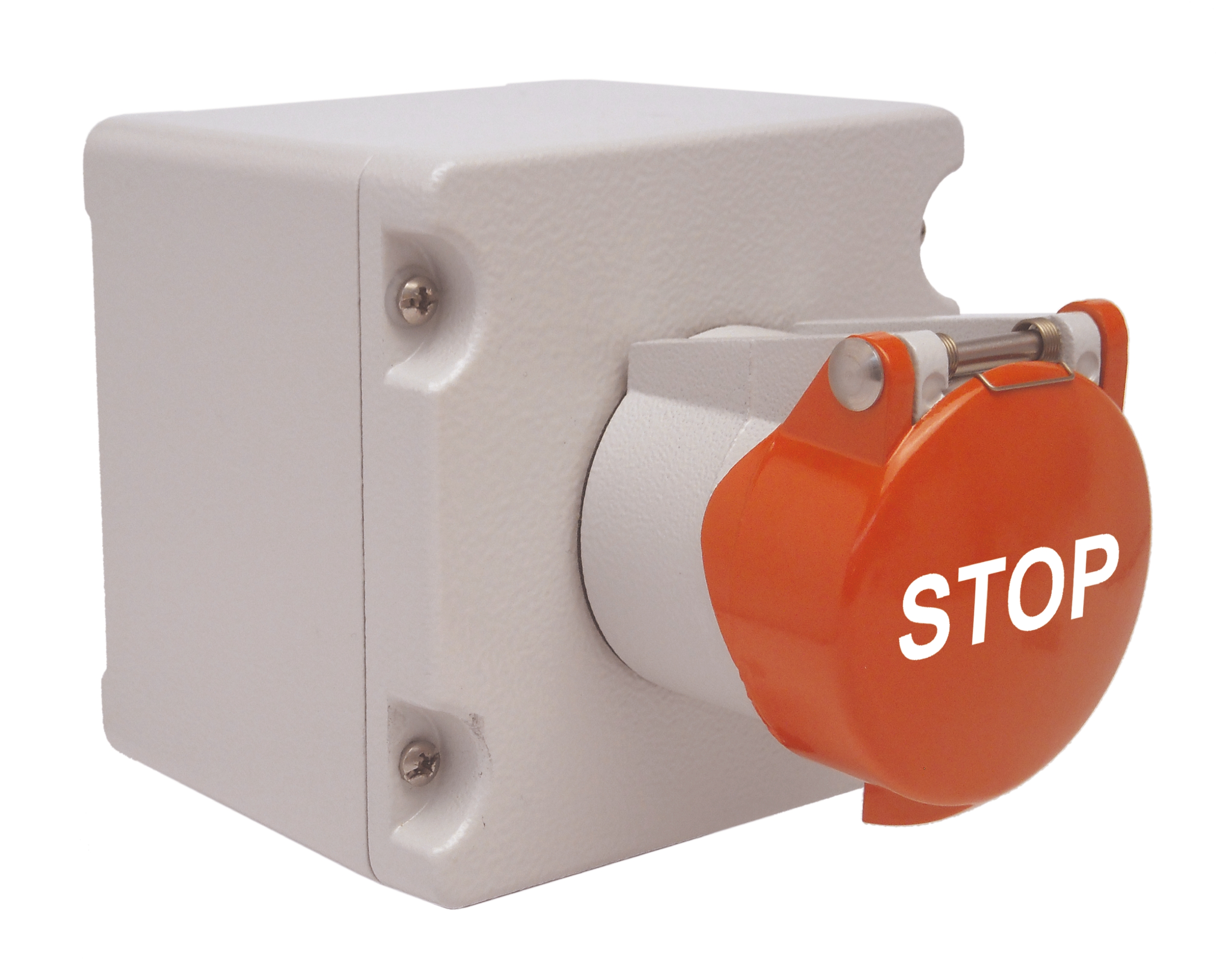

Pull to Reset (Stop) Push Button Control Station - SPDT, Die Cast Aluminium, Red, STOP, IP65
Manufacturer:
Craig & DerricottManufacturer Part No:
STOH/P/F3/MG/CO
Enrgtech Part No:
ET14133211
Warranty:
Manufacturer
£ 195.05
Checking for live stock
Series:
i-push
Push Button Marking:
STOP
Push Button Colour:
Red
Push Button Material:
Plastic
Enclosure Colour:
Grey
Contact Configuration:
SPDT
Enclosure Material:
Die Cast Aluminium
IP Rating:
IP65
Cutout Diameter:
22mm
Push Button Actuation:
Pull to Reset (Stop)
Length:
110mm
Width:
110mm
