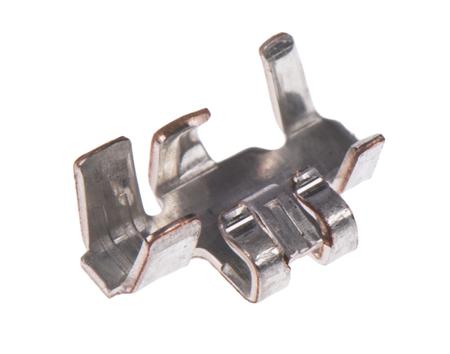

TE Connectivity AMP CT 2mm Crimp Receptacle Contacts
Crimp receptacle contacts for use in AMP CT series 2 mm connector housings. These crimp contacts have a reliable dual beam contact design for high electrical performance and accept wire size ranges from 30 to 22 AWG
AMP CT Series Female Crimp Terminal, 26AWG Min, 22AWG Max
Manufacturer:
TE Connectivity
Manufacturer Part No:
1-175102-1
Enrgtech Part No:
ET13796927
Warranty:
Manufacturer
£ 0.02
Checking for live stock
Gender:
Female
For Use With:
AMP CT Connector Housing
Series:
AMP CT
Minimum Wire Size mm²:
0.1mm²
Termination Method:
Crimp
Maximum Wire Size mm²:
0.4mm²
Minimum Wire Size AWG:
26AWG
Contact Plating:
Tin
Maximum Wire Size AWG:
22AWG
Contact Material:
Phosphor Bronze
Maximum Contact Resistance:
20mΩ
Minimum Operating Temperature:
-30°C
