TE Connectivity AMPMODU Mod I Receptacle Crimp Contacts
A range of TE Connectivity AMPMODU Mod I Receptacle Crimp Contacts.
For Crimp Tool see stock number 509-2010 . Contact details: 509-1988 22-18 awg (0.3-0.9mm²), SCP, gold, loose
509-1994 22-18 awg (0.3-0.9mm²), SCP, tin, loose
509-2004 22-18 awg (0.3-0.9mm²) HCP, tin, loose
668-9381 2-18 awg (0.3-0.9mm²) HCP, tin, strip
668-9384 2-18 awg (0.3-0.9mm²), SCP, tin, strip
668-9387 22-18 awg (0.3-0.9mm²), SCP, gold, strip
668-9390 20-17 awg(0.5-1.0mm²) HCP, tin, strip
745-5845 22-18 awg (0.3-0.9mm²) HCP, gold, loose
745-5097 2-18 awg (0.3-0.9mm²) HCP, gold, strip
For Crimp Tool see stock number 509-2010 . Contact details: 509-1988 22-18 awg (0.3-0.9mm²), SCP, gold, loose
509-1994 22-18 awg (0.3-0.9mm²), SCP, tin, loose
509-2004 22-18 awg (0.3-0.9mm²) HCP, tin, loose
668-9381 2-18 awg (0.3-0.9mm²) HCP, tin, strip
668-9384 2-18 awg (0.3-0.9mm²), SCP, tin, strip
668-9387 22-18 awg (0.3-0.9mm²), SCP, gold, strip
668-9390 20-17 awg(0.5-1.0mm²) HCP, tin, strip
745-5845 22-18 awg (0.3-0.9mm²) HCP, gold, loose
745-5097 2-18 awg (0.3-0.9mm²) HCP, gold, strip

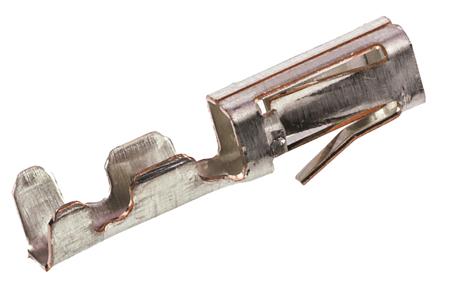

AMPMODU MOD I Series Female Crimp Terminal, 22AWG Min, 18AWG Max
Manufacturer:
TE ConnectivityManufacturer Part No:
181299-1
Enrgtech Part No:
ET13832404
Warranty:
Manufacturer
£ 0.30
Checking for live stock
Gender:
Female
For Use With:
AMPMODU MOD I Connector Housing
Series:
AMPMODU MOD I
Minimum Wire Size mm²:
0.3mm²
Termination Method:
Crimp
Maximum Wire Size mm²:
0.9mm²
Contact Plating:
Tin
Minimum Wire Size AWG:
22AWG
Contact Material:
Phosphor Bronze
Maximum Wire Size AWG:
18AWG
Maximum Contact Resistance:
12mΩ
Minimum Operating Temperature:
-65°C
