Receptacle Crimp Contacts (Mod IV)
A range of Receptacle Crimp Contacts for use with Mod IV shells which mate with shrouded headers. This range includes Crimps are for 32-28 or 26-22 or 24-20 AWG wires, see Table for details.

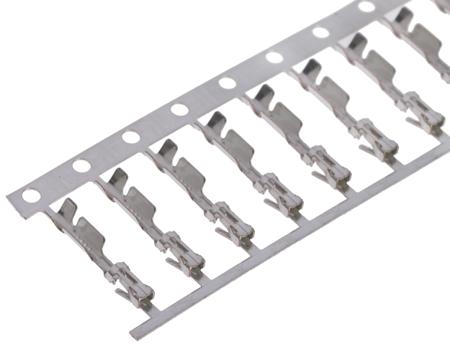

AMPMODU MOD IV Series Female Crimp Terminal, 24AWG Min, 20AWG Max
Manufacturer:
TE Connectivity
Manufacturer Part No:
2-167301-2
Enrgtech Part No:
ET13891639
Warranty:
Manufacturer
£ 0.12
Checking for live stock
Gender:
Female
For Use With:
AMPMODU MOD IV Connector Housing
Series:
AMPMODU MOD IV
Minimum Wire Size mm²:
0.2mm²
Termination Method:
Crimp
Maximum Wire Size mm²:
0.6mm²
Minimum Wire Size AWG:
24AWG
Contact Plating:
Tin
Maximum Wire Size AWG:
20AWG
Contact Material:
Phosphor Bronze
Maximum Contact Resistance:
15mΩ
Minimum Operating Temperature:
-65°C
