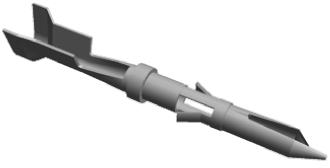

Miniature Rectangular Series Male Crimp Terminal, 26AWG Min, 18AWG Max

Gender:

Male

For Use With:

Miniature Rectangular Connector Housing

Series:

Miniature Rectangular

Minimum Wire Size mm²:

0.1mm²

Termination Method:

Crimp

Maximum Wire Size mm²:

0.9mm²

Contact Plating:

Tin

Minimum Wire Size AWG:

26AWG

Maximum Wire Size AWG:

18AWG

Contact Material:

Phosphor Bronze

Maximum Contact Resistance:

4mΩ

Minimum Operating Temperature:

-55°C

Maximum Operating Temperature:

+105°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=110735&DisplayLogo=False
