Mod V Contact
A rang of TE Connectivity High Contact Pressure (HCP) Contacts for AMPMODU V connectors.
For suitable Crimp Tool for 668-9713, 668-9716, 668-9719, 668-9722 and 778-0974 see stock number 233-0044

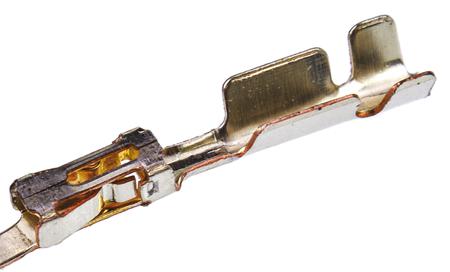

AMPMODU MOD V Series Female Crimp Terminal, 24AWG Min, 20AWG Max
Manufacturer:
TE Connectivity
Manufacturer Part No:
166309-2
Enrgtech Part No:
ET13970158
Warranty:
Manufacturer
£ 0.23
Checking for live stock
Gender:
Female
For Use With:
AMPMODU MOD IV Connector Housing
Series:
AMPMODU MOD V
Minimum Wire Size mm²:
0.2mm²
Maximum Wire Size mm²:
0.6mm²
Termination Method:
Crimp
Minimum Wire Size AWG:
24AWG
Contact Plating:
Gold
Maximum Wire Size AWG:
20AWG
Contact Material:
Phosphor Bronze
Maximum Contact Resistance:
12mΩ
Minimum Operating Temperature:
-65°C
