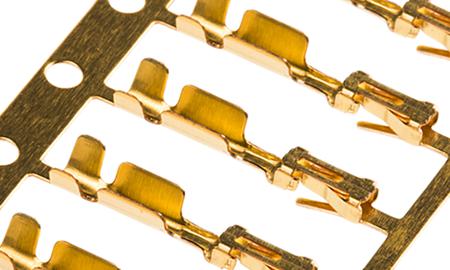

AMPMODU MOD IV Series Female Crimp Terminal, 24AWG Min, 20AWG Max

Gender:

Female

For Use With:

AMPMODU MOD IV Connector Housing

Series:

AMPMODU MOD IV

Minimum Wire Size mm²:

0.2mm²

Termination Method:

Crimp

Maximum Wire Size mm²:

0.6mm²

Contact Plating:

Gold

Minimum Wire Size AWG:

24AWG

Maximum Wire Size AWG:

20AWG

Contact Material:

Phosphor Bronze

Maximum Contact Resistance:

15mΩ

Minimum Operating Temperature:

-65°C

Maximum Operating Temperature:

+105°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=77269&DisplayLogo=False
