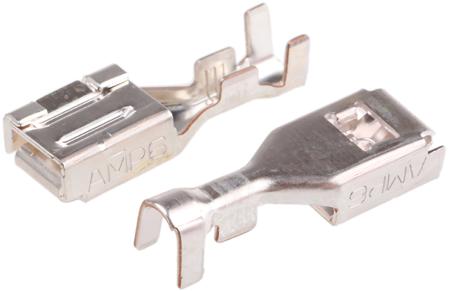

Gender:
Female
For Use With:
Dynamic 5000 Connector Housing
Series:
Dynamic 5000
Minimum Wire Size mm²:
1.25mm²
Termination Method:
Crimp
Maximum Wire Size mm²:
2mm²
Contact Plating:
Silver
Minimum Wire Size AWG:
16AWG
Contact Material:
Copper Alloy
Maximum Wire Size AWG:
14AWG
Minimum Operating Temperature:
-55°C
Maximum Operating Temperature:
+105°C
Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:
BK2712
Calibrated:
UKAS
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Capacitance Measurement:
40µF
True RMS:
Yes
Maximum Frequency:
1kHz
DC Current Measurement Resolution:
1µA dc
AC Current Measurement Resolution:
1µA ac
AC Voltage Measurement Resolution:
0.01mV ac
Resistance Measurement Resolution:
10mΩ
DC Voltage Measurement Resolution:
0.01mV dc
Capacitance Measurement Resolution:
1pF
Safety Category Level:
CAT II, CAT III
Battery Type:
9V
Maximum Operating Temperature:
+50°C
Best Resistance Measurement Accuracy:
±1.5% + 20 Digits
Dimensions:
78 x 42.5 x 165mm
Best Capacitance Measurement Accuracy:
±5% +5 Digits
Safety Category Voltage:
600 V, 750 V, 1000V
Length:
78mm
Best AC Current Accuracy:
±2.5% + 30 Digits
Width:
42.5mm
Best DC Voltage Accuracy:
±0.15% + 10 Digits
Height:
165mm
Weight:
285g
Best DC Current Accuracy:
±2% + 10 Digits
Best AC Voltage Accuracy:
±2% + 20 Digits
Minimum Operating Temperature:
0°C
