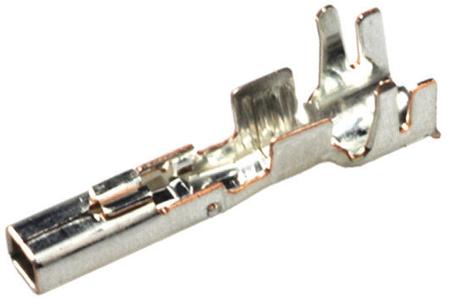

Signal Double Lock Series Female Crimp Terminal, 26AWG Min, 22AWG Max

Gender:

Female

For Use With:

SDL (Signal Double Lock) Connector Housing

Series:

Signal Double Lock

Minimum Wire Size mm²:

0.1mm²

Maximum Wire Size mm²:

0.35mm²

Termination Method:

Crimp

Contact Plating:

Tin

Minimum Wire Size AWG:

26AWG

Maximum Wire Size AWG:

22AWG

Contact Material:

Phosphor Bronze

Maximum Contact Resistance:

20mΩ

Minimum Operating Temperature:

-30°C

Maximum Operating Temperature:

+105°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=103856&DisplayLogo=False
