MULTILOCK 040 & 070 Contacts & Tooling
These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly used in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating.
Features of 040 Series:
• Current rating – 8A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 10 mΩ max (initial)
• Overall resistance: 20 mΩ max (final)
• Operating temperature: -30 – 105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities Features of 070 Series: • Current rating: 15A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 1 mΩ max (initial)
• Overall resistance: 10 mΩ max (final)
• Operating temperature: -30 to +105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 10 mΩ max (initial)
• Overall resistance: 20 mΩ max (final)
• Operating temperature: -30 – 105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities Features of 070 Series: • Current rating: 15A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 1 mΩ max (initial)
• Overall resistance: 10 mΩ max (final)
• Operating temperature: -30 to +105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities

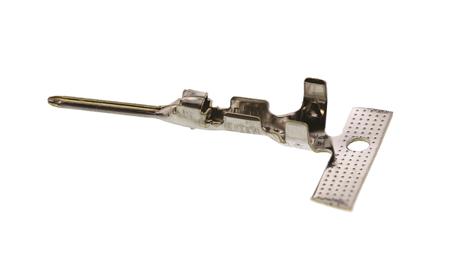

MULTILOCK 040 Series Male Crimp Terminal, 23AWG Min, 20AWG Max
Manufacturer:
TE Connectivity
Manufacturer Part No:
173682-1
Enrgtech Part No:
ET14012369
Warranty:
Manufacturer
£ 0.13
Checking for live stock
Gender:
Male
For Use With:
MULTILOCK 040 Connector Housing
Series:
MULTILOCK 040
Minimum Wire Size mm²:
0.3mm²
Termination Method:
Crimp
Maximum Wire Size mm²:
0.5mm²
Minimum Wire Size AWG:
23AWG
Contact Plating:
Tin
Contact Material:
Brass
Maximum Wire Size AWG:
20AWG
Maximum Contact Resistance:
20mΩ
Minimum Operating Temperature:
-30°C
