MULTILOCK 040 & 070 Contacts & Tooling
These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly used in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating.
Features of 040 Series:
• Current rating – 8A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 10 mΩ max (initial)
• Overall resistance: 20 mΩ max (final)
• Operating temperature: -30 – 105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities Features of 070 Series: • Current rating: 15A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 1 mΩ max (initial)
• Overall resistance: 10 mΩ max (final)
• Operating temperature: -30 to +105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 10 mΩ max (initial)
• Overall resistance: 20 mΩ max (final)
• Operating temperature: -30 – 105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities Features of 070 Series: • Current rating: 15A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 1 mΩ max (initial)
• Overall resistance: 10 mΩ max (final)
• Operating temperature: -30 to +105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities

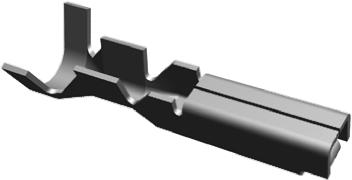

MINI-MIC Series Female Crimp Terminal
Manufacturer:
TE ConnectivityManufacturer Part No:
282438-1
Enrgtech Part No:
ET14025369
Warranty:
Manufacturer
£ 0.08
Checking for live stock
Gender:
Female
For Use With:
AMP SUPERSEAL 1.5 Connector Housing
Series:
MINI-MIC
Minimum Wire Size mm²:
0.5mm²
Maximum Wire Size mm²:
1mm²
Termination Method:
Crimp
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Maximum Contact Resistance:
20mΩ
Minimum Operating Temperature:
-30°C
Maximum Operating Temperature:
+105°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=95413&DisplayLogo=False
