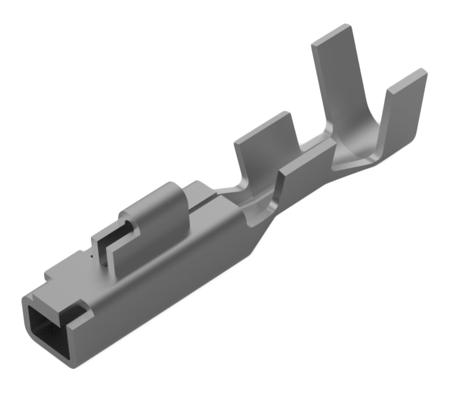

AMP Universal Power Series Female Crimp Terminal, 26AWG Min, 22AWG Max

Gender:

Female

For Use With:

AMP Universal Power Connector Housing

Series:

AMP Universal Power

Minimum Wire Size mm²:

0.1mm²

Termination Method:

Crimp

Maximum Wire Size mm²:

0.35mm²

Contact Plating:

Tin

Minimum Wire Size AWG:

26AWG

Contact Material:

Copper Alloy

Maximum Wire Size AWG:

22AWG

Minimum Operating Temperature:

-30°C

Maximum Operating Temperature:

+105°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=57305&DisplayLogo=False
