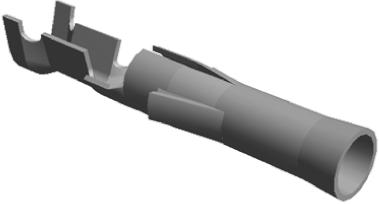

.093 Commercial Series Female Crimp Terminal, 24AWG Min, 18AWG Max

Gender:

Female

For Use With:

.093 Commercial Connector Housing

Series:

.093 Commercial

Minimum Wire Size mm²:

0.3mm²

Termination Method:

Crimp

Maximum Wire Size mm²:

0.8mm²

Contact Plating:

Tin

Minimum Wire Size AWG:

24AWG

Contact Material:

Brass

Maximum Wire Size AWG:

18AWG

Maximum Contact Resistance:

4mΩ

Minimum Operating Temperature:

-55°C

Maximum Operating Temperature:

+105°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=96514&DisplayLogo=False
