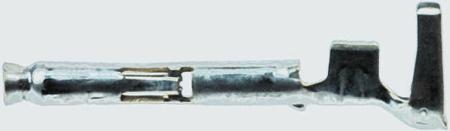

Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 22AWG Min, 18AWG Max

Gender:

Female

For Use With:

Mini-Universal MATE-N-LOK Connector Housing

Series:

Mini-Universal MATE-N-LOK

Minimum Wire Size mm²:

0.3mm²

Maximum Wire Size mm²:

0.9mm²

Termination Method:

Crimp

Contact Plating:

Tin

Minimum Wire Size AWG:

22AWG

Maximum Wire Size AWG:

18AWG

Contact Material:

Phosphor Bronze

Maximum Contact Resistance:

10mΩ

Minimum Operating Temperature:

-20°C

Maximum Operating Temperature:

+105°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=105099&DisplayLogo=False
