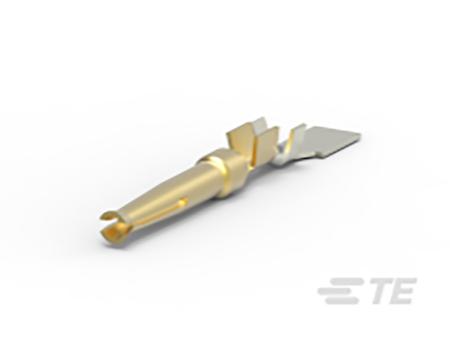

This specification covers the requirements for the application of AMPLIMITE HDP--20 and Economy Crimp Snap Subminiature D Commercial Connectors with all--plastic contact retention. These commercial connectors are available with or without shielding or shielding enclosure kits. Contacts are available in three snap--in types: crimp, posted, and solder cup. The crimp snap--in contacts are available with or without an insulation support barrel for strain relief. Refer to Application Specification 114--10000 for information on these HD--20 Precision Formed Contacts. Various accessories are compatible with the connectors and kits. Assembled connectors are designed to meet the requirements of Military Specification MIL--C--24308.

AMPLIMITE HDP--20 Connectors come in a variety of sizes for your production needs and are adaptable to a variety of mounting and hardware requirements. Using a keystone mating face configuration, these connectors incorporate multiple polarization and mating alignment features, allowing flexibility in system design. The plug connector has an integral hood which protects the inserted pin contacts. The cavity rows are number--coded for your convenience. These connectors accept a contact with a wire size range of 28--18 AWG.
