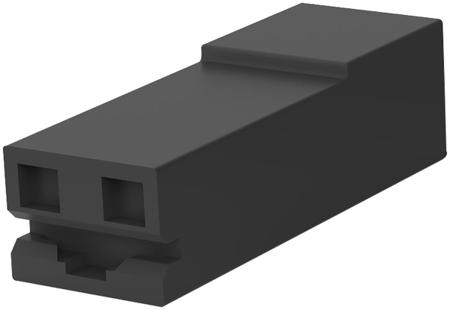

TE Connectivity High Temperature Positive Lock Connector Housings - MK II 250 Series Positive Lock MK II 250 series high temperature housings for use with Positive Lock MK II 250 series high temperature crimp receptacle terminals. These high temperature Positive Lock MK II 250 housings are made from black UL 94V-0 LCP and can withstand an operating temperature range of -40 to + 240°C. The housings provide insulation to the receptacles and feature internal locking ramps which help provide a secure connection. A latch on the receptacle engages with a ramp in the connector housing and prevents disconnection when the wire is pulled. The Positive Lock receptacle housing also acts as a removal tool. When the housing is pulled back the ramped housing wall pushes down the latch on the receptacle causing the mated tab to become unlocked. Features and Benefits • High temperature LCP for -40 to + 240°C operating temperature range
• Provides insulation to terminals
• Internal locking ramps for secure connection
• Enables easy unmating of receptacle and tab Product Application Information These Positive Lock MK II 250 series high temperature housings are ideal for use in demanding high temperature applications where strong vibration and mechanical strain is also present. Applications include passenger vehicles, off-road vehicles, trucks and buses, white goods, ranges and ovens, industrial equipment and control cabinets
