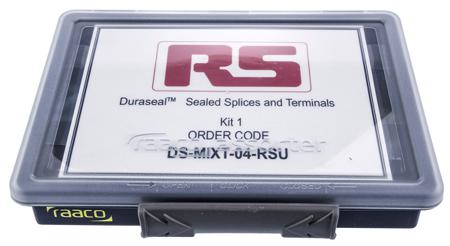

TE Connectivity Duraseal Terminal and Splice Service and Repair Kit 1 This Duraseal terminal and splice service and repair kit contains a range of insulated Duraseal crimp terminals, with a wire size range of 0.5mm to 6mm2, coloured blue, red and yellow. Storage for the Duraseal crimp terminal and splice service and repair kit comes in a sturdy plastic case, with convenient compartments and a locking lid. For details of kit contents please see table. Kit Contents Terminal Type Terminal Size Terminal Colour Number Contained in Kit Manufacturer Part Number Replacement Stock Number Duraseal Ring M5 Red 10 DR-2-50 465-643 Duraseal Ring M5 Blue 10 DR-6-50 465-659 Duraseal Splice 0.5 - 1 mm 2 Red 50 DS-18-22 533-673 Duraseal Splice 1.5 - 2.5 mm 2 Blue 25 DS-14-16 533-667 Duraseal Splice 4 - 6 mm 2 Yellow 10 DS-10-12 533-651 Duraseal Receptacle 0.5 - 1.5mm 2 Red 10 DP-2-63 465-700 Duraseal Receptacle 1.5 - 2.5mm 2 Blue 10 DP-6-63 465-716 Approvals UL Approvals UL Duraseal Heatshrinkable TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint. • The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important • Kits are also available comprising various heat...
