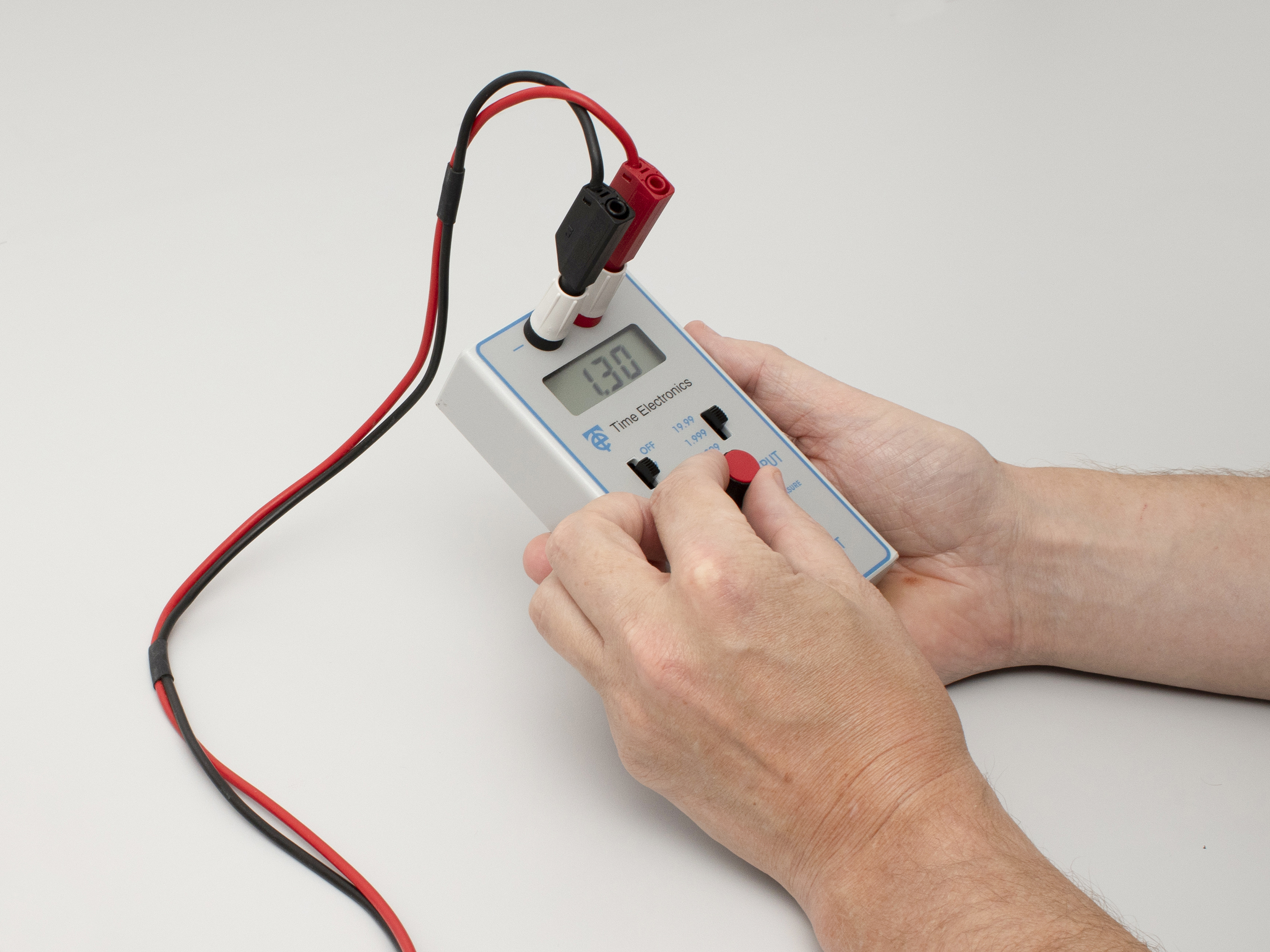

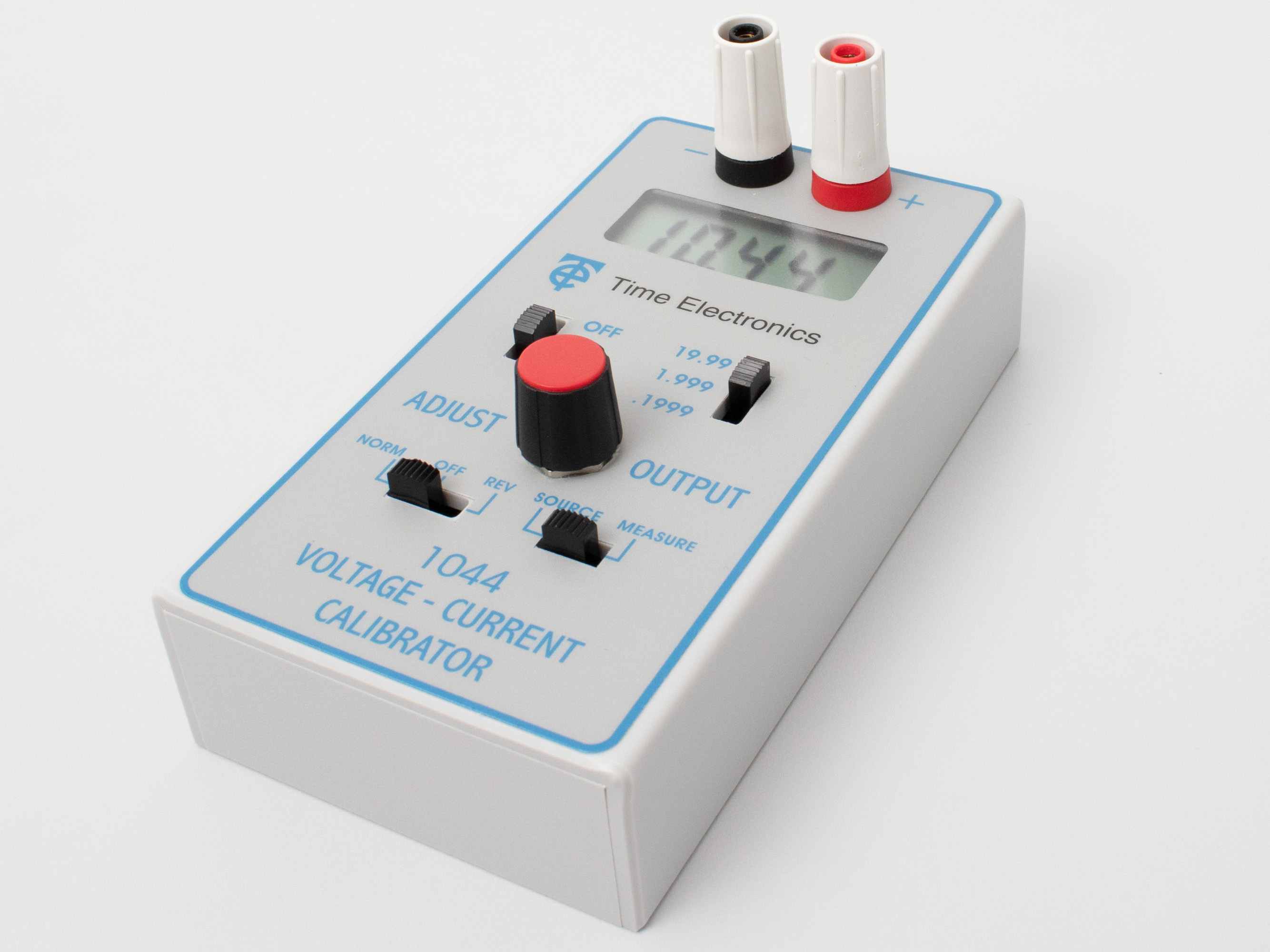

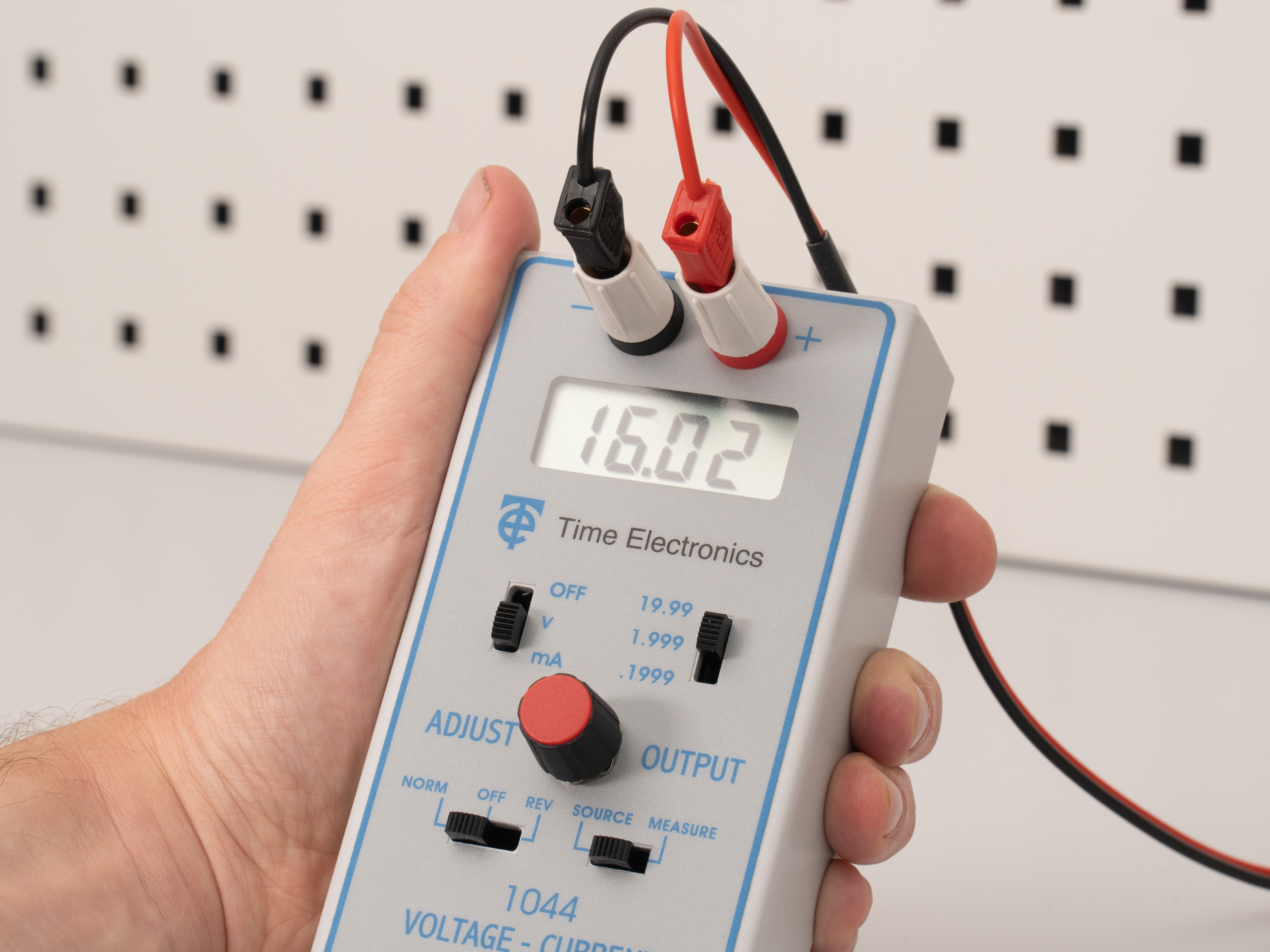

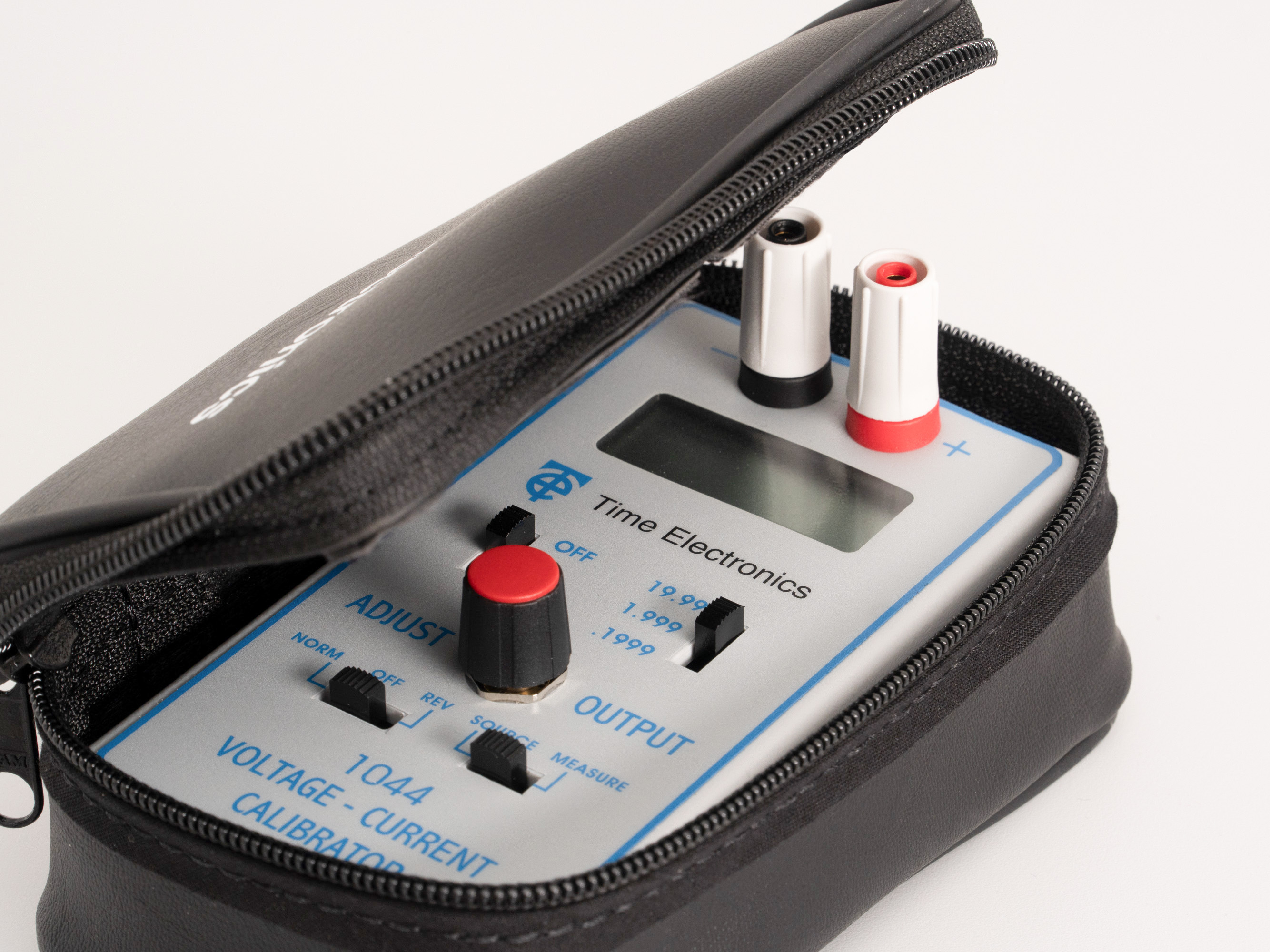

Voltage and Current Calibrator 1044
A pocket size instrument with an accuracy of 0.05% that can source and measure voltage and current in one compact unit.
Three voltage and 3 current ranges
Source output and measurement values displayed on clear LCD
Housed in rugged ABS case
Low battery condition indicator
Can be operated by 1 x PP3 alkaline battery (not supplied)
Dimensions (H x W x D): 142 x 75 x 20mm
Source output and measurement values displayed on clear LCD
Housed in rugged ABS case
Low battery condition indicator
Can be operated by 1 x PP3 alkaline battery (not supplied)
Dimensions (H x W x D): 142 x 75 x 20mm
1044 Current & Voltage Calibrator, Max Voltage 20V, Max Current 20mA, UKAS Calibration
Manufacturer:
Time Electronics
Manufacturer Part No:
1044
Enrgtech Part No:
ET16892944
Warranty:
Manufacturer
£ 737.35
Checking for live stock
Absolute Maximum Voltage Measurement:
20V
Calibrated:
UKAS
Absolute Maximum Current Measurement:
20mA
Best Accuracy:
±0.05 %
Output Voltage Noise:
30ppm
Power Source:
Mains
Battery Type:
9V
Dimensions:
50 x 78 x 142mm
Weight:
300g
Height:
142mm
Length:
50mm
Maximum Source Current:
20mA
