Millivolt Source & Potentiometer 1006 A highly accurate millivolt source which requires no standardisation before use. Provides 1mV to 999.9mV in 3 rangesShort circuit and overload protectedRequires 6 x AA alkaline batteries

Time Electronics Model 1017 DC Multifunction Voltage/Current/Resistance Calibrator Time Electronics 1017 is a high performance portable multifunction calibrator with voltage, current and resistance ranges. Its combination of precision and simple operation gives it versatility for workshop and field operations. The batteries are automatically recharged when the mains supply is connected. The compact, durable plastic case, with tilt stand/carry handle, takes up minimal bench space and makes the 1017 readily transportable. The instrument's outstanding stability v temperature and time performance is because of the use of special computer-selected reference diodes and resistor technology. The low-thermal emf terminals reduce errors when working with microvolt signals. Digital deviation control allows the output to be increased and decreased in % terms from 0 to ±0.999%. This provides a direct readout of error and simplifies the recording results for calibration certificates. It enables the user to see immediately whether the unit under test is within specification. The 1017 is suitable for calibrating and simulating a wide range of instruments including thermocouples, transducers, 4 - 20 mA and 0 - 10 V transmitters and platinum resistance thermometers. DC voltage 10nV to 100VDC current 100nA to 100mAResistance 10MΩ to 10kΩAccuracy 0.0005% (50 ppm)1 ppm setting resolutionNoise Stability Deviation control - voltage and currentBattery or mains operationDimensions 290 x 250 x 110 mmWeight 2.4kg

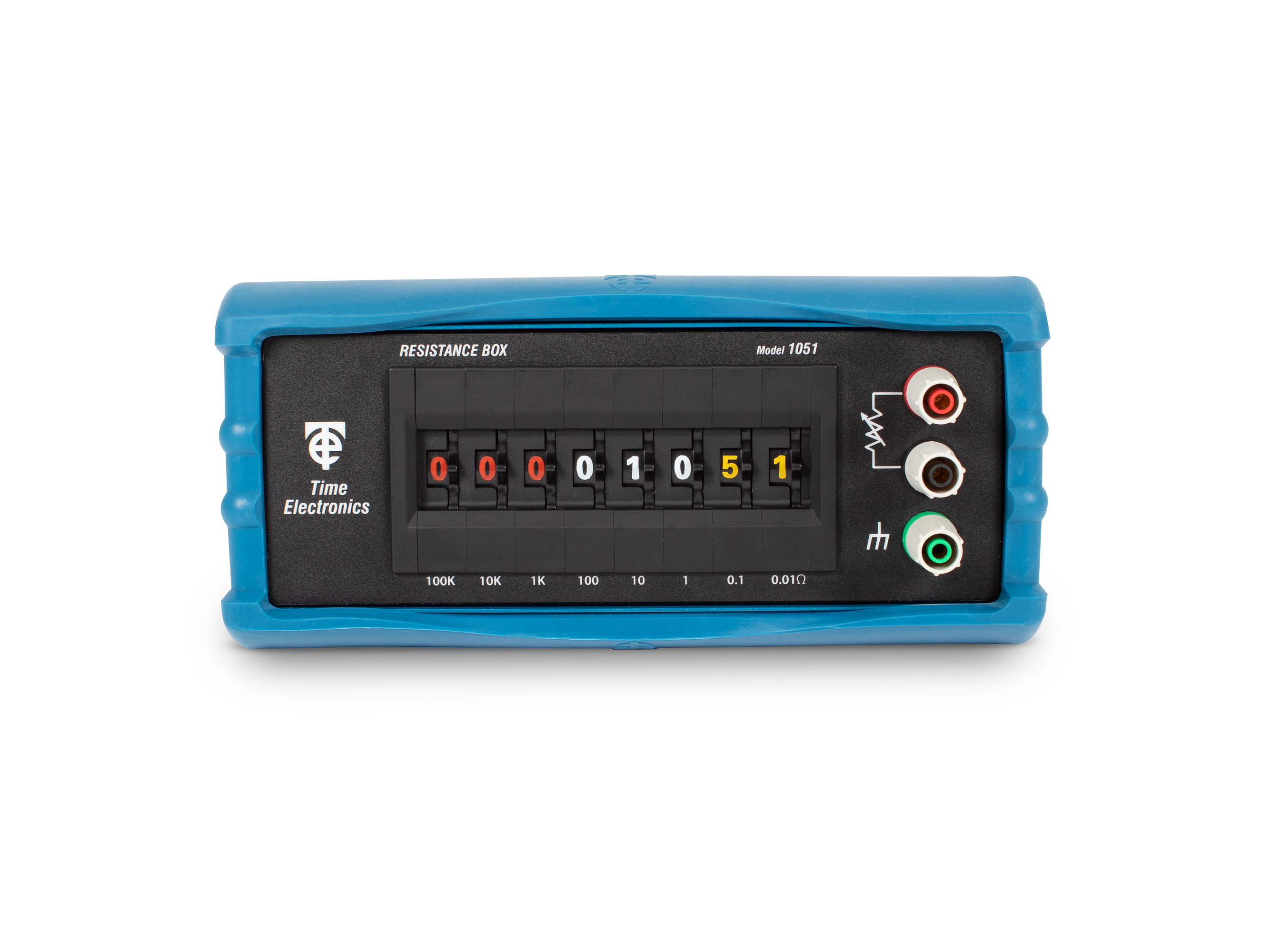

Calibration/ Substitution, 8 Decade-Thumb Wheel Resistance Boxes For simulating resistance transducers and for laboratory, industrial and educational use. Required resistance is set by clearly marked thumbwheel switches, colour coded to aid identification.

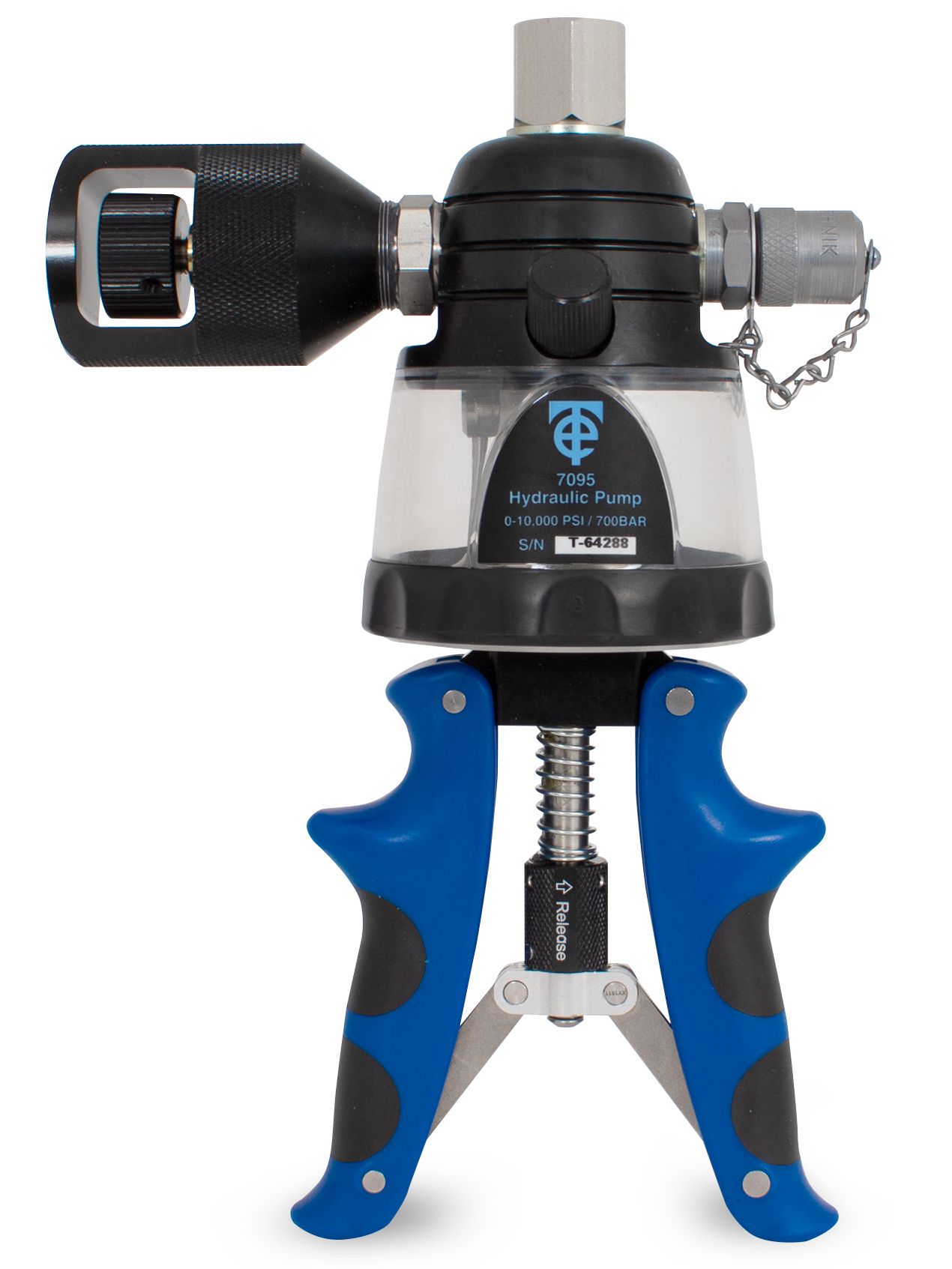

Hydraulic Calibration Pump Kit 7095 Performance and rugged design with features including contoured cushioned handles for comfort and control, protective housing for the vent knob, a shatter-proof reservoir, and oversized check valves for smooth controlled operation. 0 – 700bar (10,000psi)Priming featureTriple filtration (prevents failure caused by dirt)Non-oil based lubricant used on all moving partsBuilt in pressure relief valve (prevents over pressurizing)

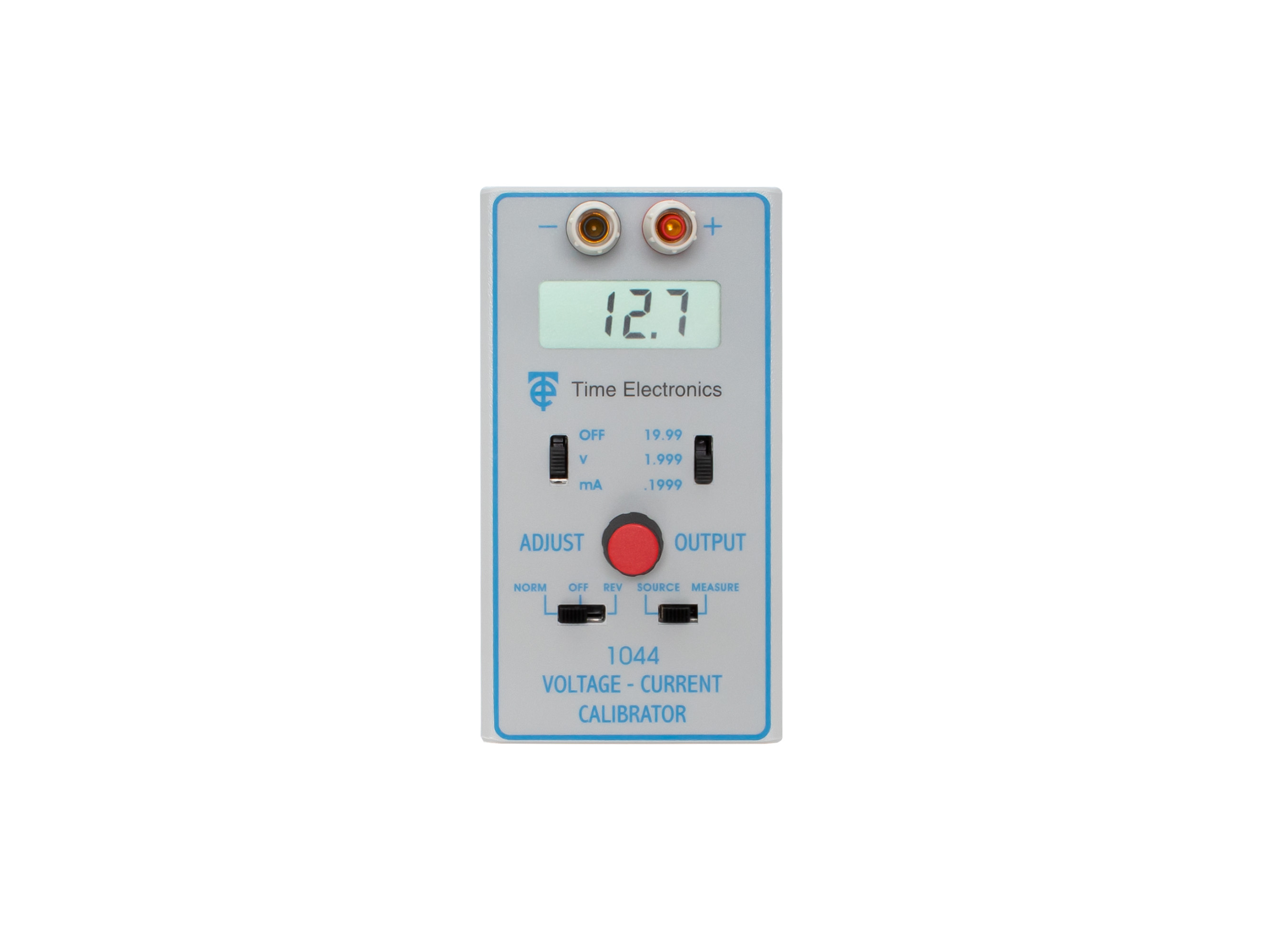

Voltage and Current Calibrator 1044 A pocket size instrument with an accuracy of 0.05% that can source and measure voltage and current in one compact unit. Three voltage and 3 current rangesSource output and measurement values displayed on clear LCDHoused in rugged ABS caseLow battery condition indicatorCan be operated by 1 x PP3 alkaline battery (not supplied)Dimensions (H x W x D): 142 x 75 x 20mm

Current Voltage Loop Calibrator 1048 Easy to use current, voltage and loop calibratorSource & measure in 3 current & 3 volt ranges Transmitter/simulator sink functionHigh accuracy 0.02%A large easy to read 4.5 digit LCD which auto-ranges, 0.005% of range resolutionOutput functions include steps, ramps and inching A ten turn potentiometer controls output adjustment with up/down increment buttons for fine controlOutput can be reversed (positive/negative) and zeroed at the flick of a switchManual rest of ramp function is also provided for quick restore

Current/Voltage Source 1030 An easy to use, portable instrument for general purpose signal injection which does not require any standardisation before use. 3 voltage and 2 current ranges1kΩ precision resistor (0.01%) is supplied to provide an extended voltage range of 0 to 8VRequires PP3 battery

1071 7 Decade Capacitance Box Many applications in industry and education. Connection by 4mm binding posts and a third terminal is provided to enable the case to be earthed or connected to either output. High stability capacitors used throughout. 10pF to 100uFIn-line reading with colour coded digitsBi-polar workingCompact 110 x 75 x 200mm

1071 7 Decade Capacitance Box Many applications in industry and education. Connection by 4mm binding posts and a third terminal is provided to enable the case to be earthed or connected to either output. High stability capacitors used throughout. 10pF to 100uFIn-line reading with colour coded digitsBi-polar workingCompact 110 x 75 x 200mm

Time Electronics Model 1061 Resistance Decade Box Time Electronics 1061 is a low-cost, robust resistance decade box designed to meet requirements for educational and industrial applications. Metal film resistors with a 0.75W power rating are used throughout, conferring the advantages of stability and low temperature coefficient. Six large switches with clear numerical readout enhance ease-of-use. Slim-line design minimises take-up of bench space. 1% accuracy and wide range facilitate production or select-on-test usage. The case provides complete electrostatic screening. Resistance is selected by dialling the required value, using the rotary switches. This enables precise setting with clear unambiguous indication. Number of decades = 6Range/resolution 1.2 MΩ / 1Ω stepsAccuracy ±1%In-line readoutLow temperature coefficient, 100 ppm/°CResidual resistance Power rating 0.75W per resistorVoltage Rating: Maximum 300 V DC/AC RMSMechanically and electrically robustFront panel safety terminals (compatible with 4mm shrouded plugs, standard plugs, bare wires, spade terminals)Fully screenedDimensions 355(W) x 63(H) x 82(D) mm, weight 0.75kg

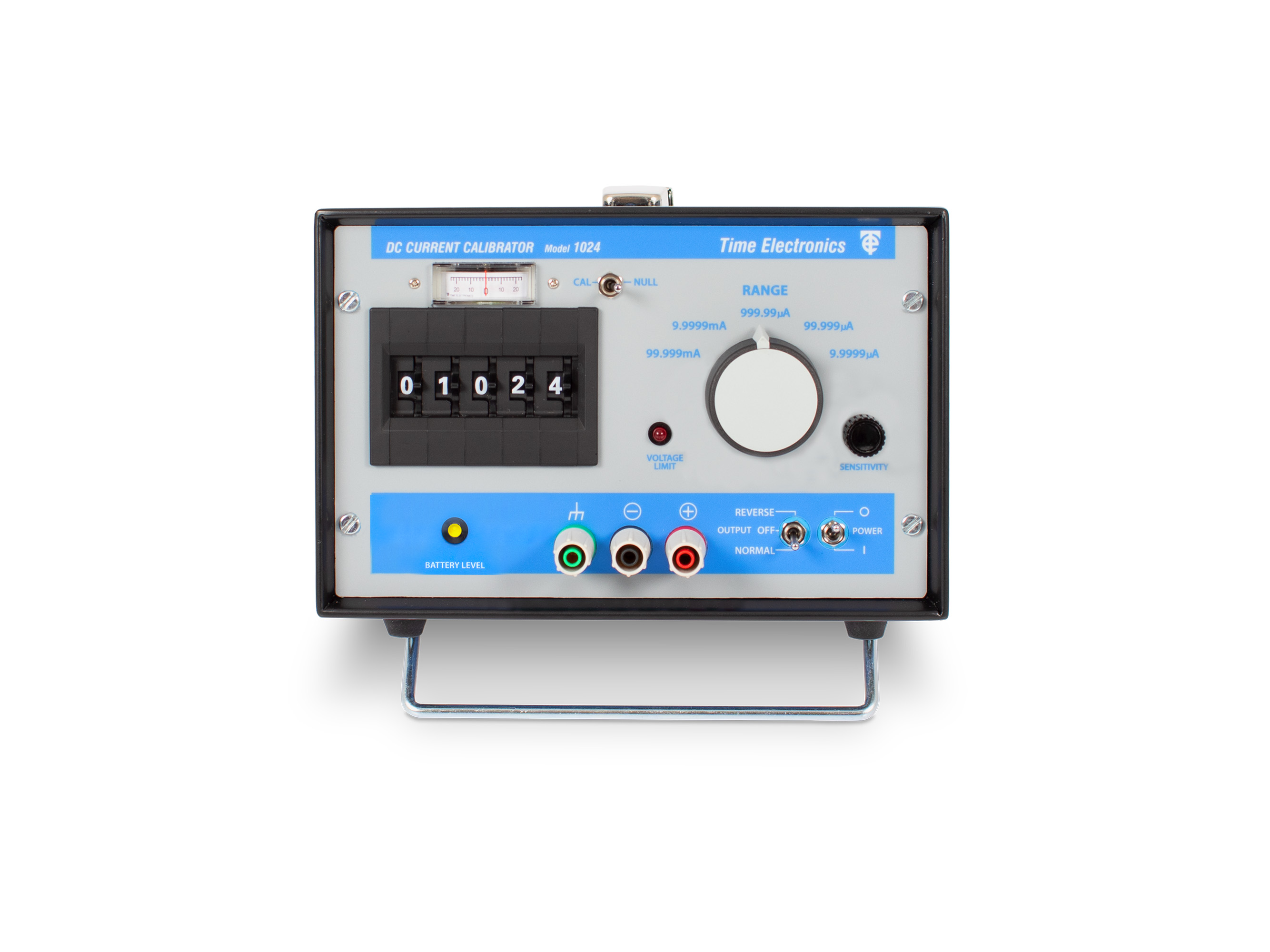

Time Electronics Model 1024 DC Current Calibrator with Null Measuring Facility Time Electronics 1024 is a readily portable solid state battery-powered calibrator suitable for laboratory, field or industrial use. It incorporates Time Electronics' well-proven circuit techniques. Additionally, the null balance system enables the 1024 to be used for making accurate current measurement. Operation is by backing the current source output against the current to be measured, with the difference being displayed on a sensitive centre zone null meter. At the null point, there is no voltage drop across the 1024. Applications include calibration and testing of current-sensitive transducers, calibration and linearity tests (on digital and electronic current meters) and semiconductor parameter measurements (such as diode conduction voltages at specified current levels). Simply plugging the 1024 into a mains supply will charge its batteries - a front panel indicator serves as a supply on/off display and monitors the battery supply condition. Up to 100mA output0.02% accuracy10 ppm/hr stabilityNull facilityPortableDimensions 220(L) x 160(H) x 200(D) mmWeight 3.3kgBattery and mains operation

1021 Current Source A portable, high stability, instrument deriving its accuracy from a precision aged reference diode and low temperature coefficient metal film resistors. The instrument incorporates overload protection and LED indication of insufficient drive voltage. A Null measuring facility allows dc current to be measured to 0.1μA resolution. Supplied in a sturdy carrying case.
