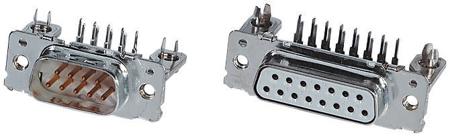

Amplimite HD-20 9 Way Right Angle Through Hole D-sub Connector Socket, 2.74mm Pitch, with 4-40 UNC

Number of Contacts:

9

Gender:

Female

Body Orientation:

Right Angle

Mounting Type:

Through Hole

Pitch:

2.74mm

Mounting Hardware:

4-40 UNC Threaded Inserts, Boardlocks

Termination Method:

Solder

Current Rating:

2.2A

Housing Material:

Glass Fibre Reinforced PBT

Voltage Rating:

1.0 kV

Length:

31.19mm

Width:

6.3mm

Depth:

12.93mm

Series:

Amplimite HD-20

Contact Plating:

Gold over Nickel

Contact Material:

Copper Alloy

Dimensions:

31.19 x 6.3 x 12.93mm

Minimum Operating Temperature:

-55.0°C

Series Number:

1393480

Maximum Operating Temperature:

+125°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=99793&DisplayLogo=False
