AMPLIMITE D-Sub Connector, Solder Cup Termination, Cable Mount
AMPLIMITE standard density d-sub cable connectors with solder cup terminations, tin plated steel front shells, UL 94V-0 PBTP grey thermoplastic housings, 3.0mm diameter mounting holes and are pre-loaded copper alloy, gold plated contacts.
Steel tin plated
Grey thermoplastic connector housing
3A current rating
500 MΩ insulation resistance
Dielectric Strength 1000Vac
Temperature rating -50 to +125°C
Grey thermoplastic connector housing
3A current rating
500 MΩ insulation resistance
Dielectric Strength 1000Vac
Temperature rating -50 to +125°C

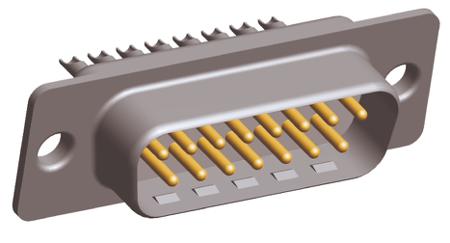

15 Way Panel Mount D-sub Connector Plug, 2.74mm Pitch
Manufacturer:
TE Connectivity
Manufacturer Part No:
4-1393483-8
Enrgtech Part No:
ET13890636
Warranty:
Manufacturer
£ 4.76
Checking for live stock
Number of Contacts:
15
Gender:
Male
Body Orientation:
Straight
Mounting Type:
Panel Mount
Pitch:
2.74mm
D Connector Type:
Standard D-Sub
Termination Method:
Solder
D-Sub Shell Size:
A
Housing Material:
Steel
Length:
39.52mm
Width:
12.93mm
Depth:
16.82mm
