AMPLIMITE D-sub Connector, HD-20 Series, Front Metal Shell, PCB Mount, Straight Post
AMPLIMITE HD-20 series straight posted PCB mount d-sub connectors with tin plated steel front shells, 94V-0 black thermoplastic housings and preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with 0.00076 gold plating or gold flash and 3.18mm or 4.32mm post lengths. These AMPLIMITE HD-20 PCB mount straight post d-sub connectors are available with a variety of PCB retention types including brass threaded inserts and zinc screwlocks.

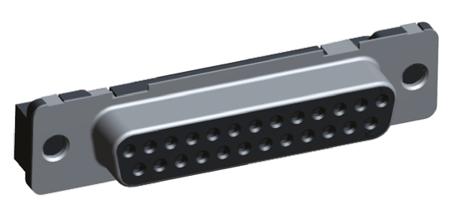

Amplimite HD-20 25 Way Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC, Threaded Insert
Manufacturer:
TE Connectivity
Manufacturer Part No:
5745967-8
Enrgtech Part No:
ET14026097
Warranty:
Manufacturer
£ 11.42
Checking for live stock
Number of Contacts:
25
Gender:
Female
Body Orientation:
Straight
Mounting Type:
Through Hole
Pitch:
2.77mm
Termination Method:
Solder
Mounting Hardware:
4-40 UNC, Threaded Insert
Housing Material:
Thermoplastic
Voltage Rating:
250.0 V
Length:
53.09mm
Width:
12.16mm
Depth:
12.55mm
