Metal Shell Unterminated Solder cups will accommodate 26 AWG cable and smaller Splayed solder cup rows to aid user assembly Dimensions for Metal Shell Terminated and Unterminated Type A B C D E F G H J 9-way plug 19.94 7.82 14.35 10.16 6.86 8.48 4.7 10.57 4.65 9-way socket 19.94 7.82 14.35 10.16 6.86 10.16 6.38 10.90 4.98 15-way plug 23.75 7.82 18.16 13.97 6.86 12.29 4.7 10.57 4.65 15-way socket 23.75 7.82 18.16 13.97 6.86 13.97 6.38 10.90 4.98 21-way plug 27.56 7.82 21.97 17.78 6.86 16.10 4.7 10.57 4.65 21-way socket 27.56 7.82 21.97 17.78 6.86 17.78 6.38 10.90 4.98 25-way plug 30.10 7.83 24.51 20.32 6.86 18.64 6.38 10.57 4.65 25-way socket 30.10 7.83 24.51 20.32 6.86 20.32 6.38 10.90 4.98 31-way plug 33.90 7.82 28.31 24.13 6.86 22.45 4.7 10.57 4.65 31-way socket 33.90 7.82 28.31 24.13 6.86 24.13 6.38 10.90 4.98 37-way plug 37.72 7.82 32.13 27.94 6.86 26.26 4.7 10.57 4.65 37-way socket 37.72 7.82 32.13 27.94 6.86 27.94 6.38 10.90 4.98 51-way plug 36.45 8.92 30.86 49.76 8.1 24.99 5.79 10.57 4.65 51-way socket 36.45 8.92 30.86 49.76 8.1 26.67 7.47 10.90 4.98 100-way plug 55.1 10.00 45.72 36.62 9.14 35.15 6.88 10.56 4.65 100-way socket 55.1 10.00 45.72 36.62 9.14 38.30 10.01 10.89 4.98 Standards Mil-PRF-83513, BS9523-F0002 Micro D 0.05inch Pitch Designed for use in electronic systems in commercial and military aerospace, military land and sea and industrial/telecommunication applications, the Micro D connector provides exceptional mechanical and electrical integrity, whilst operating in extreme vibration and environmental conditions. High Performance, Gold Plated Twist Pin Contact System 3 Amp Contact Rating High Density ....

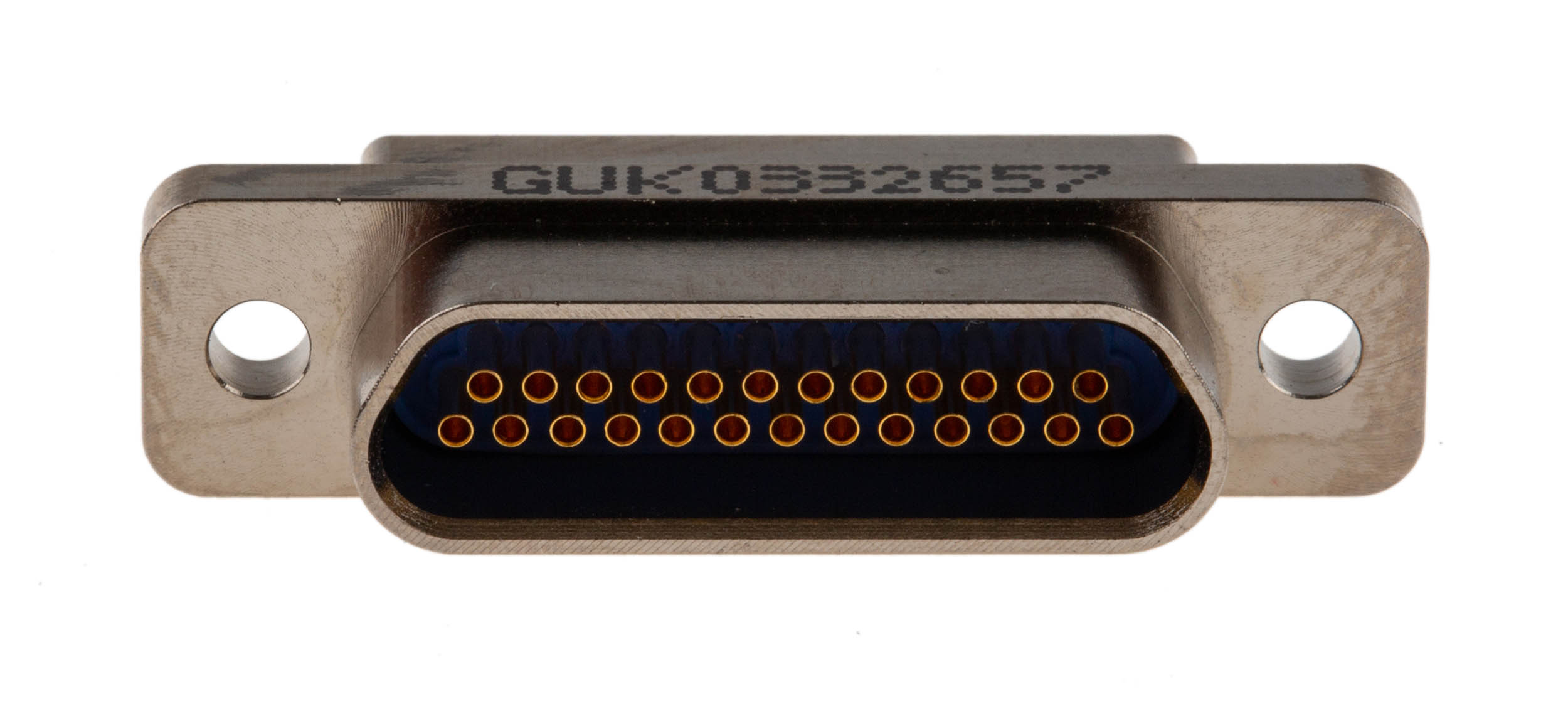

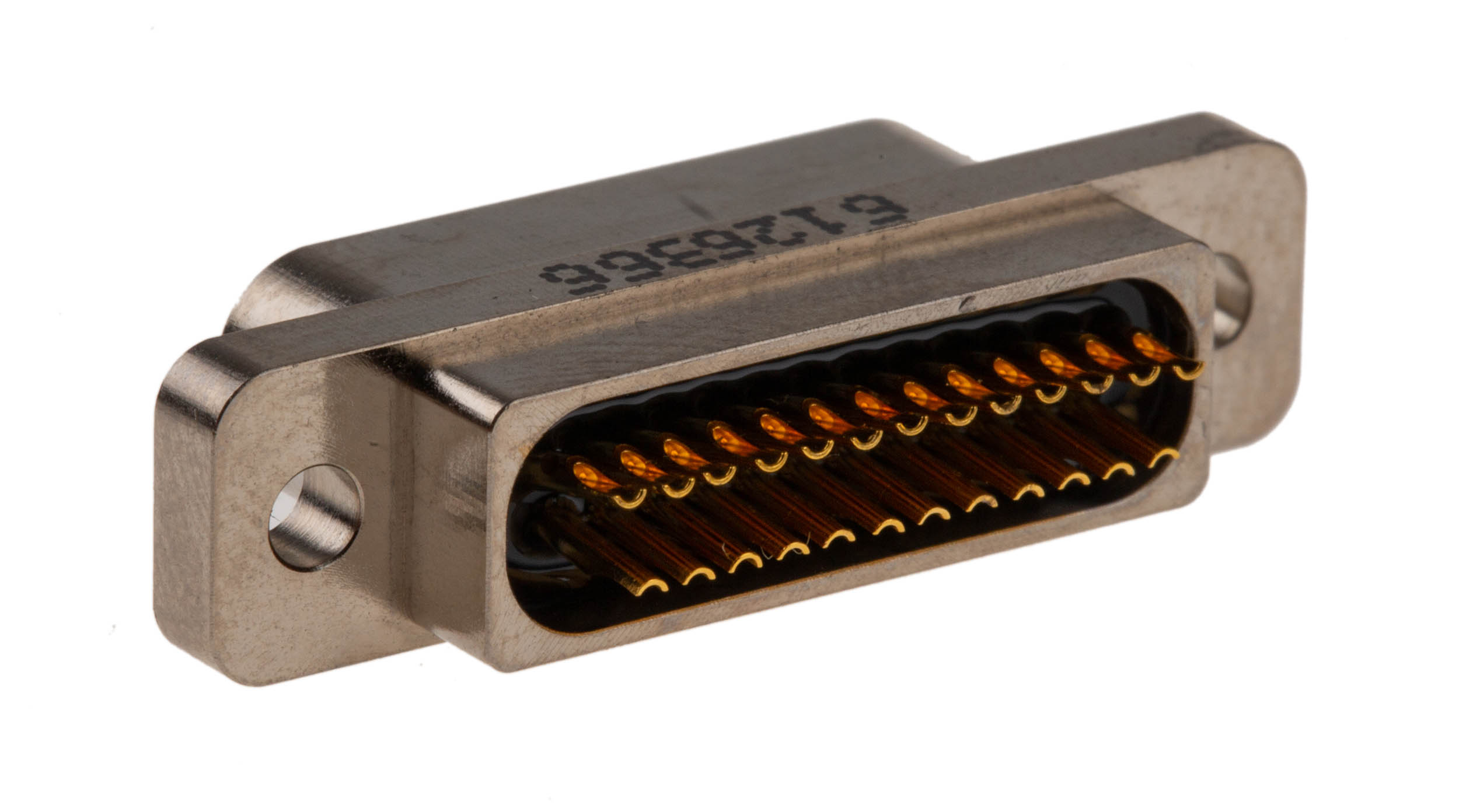

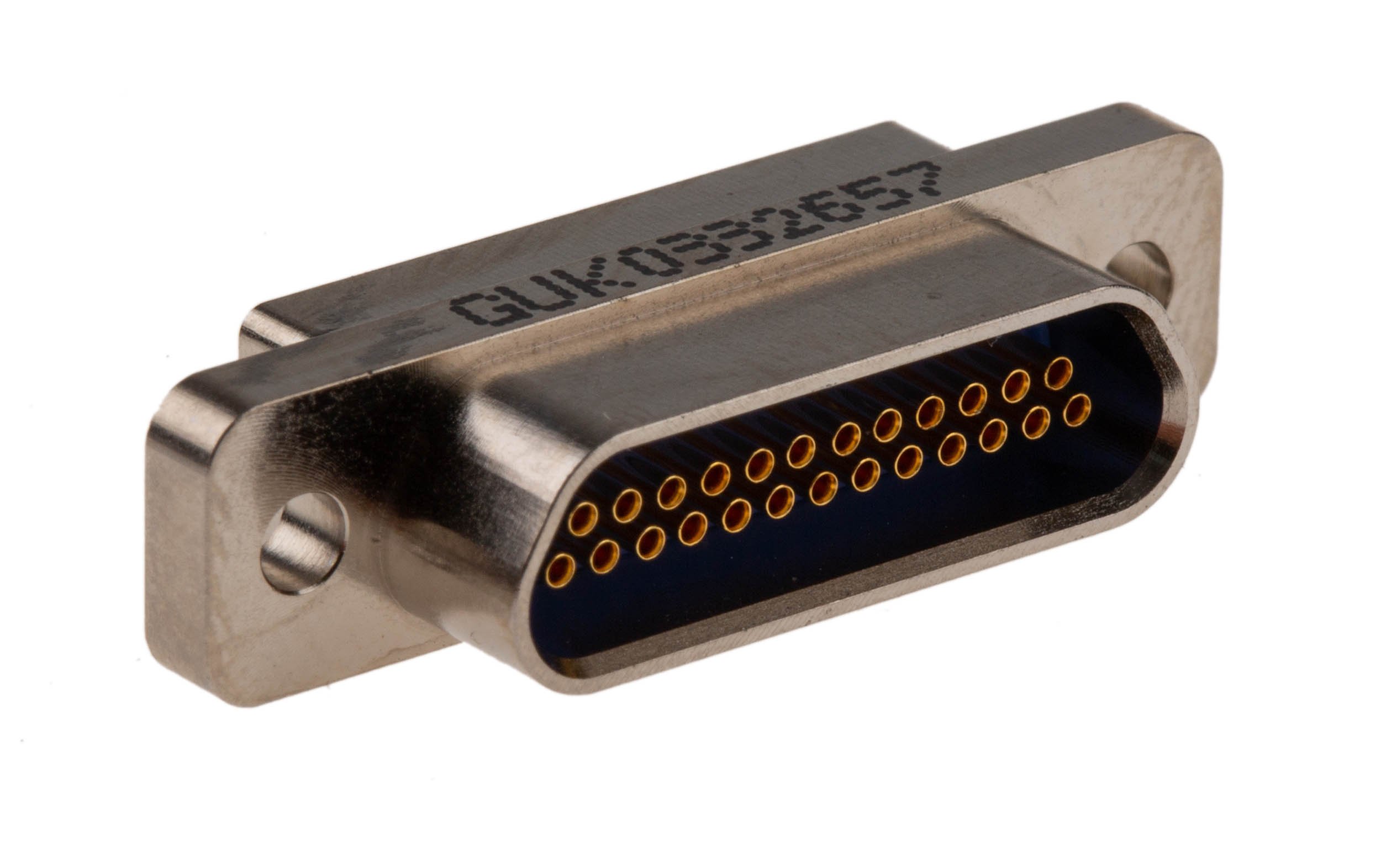

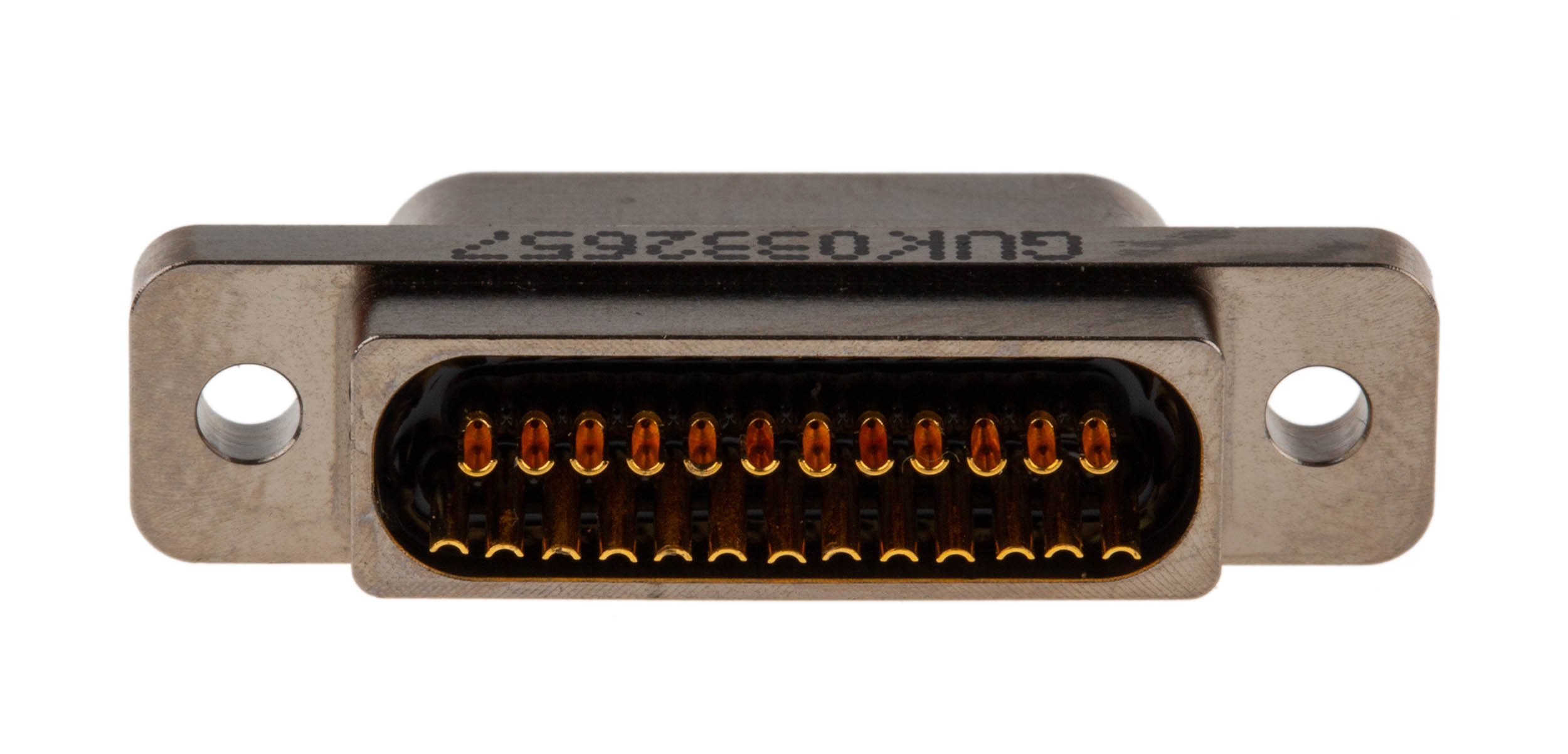

Glenair MWDM2L-25SS, MWDM Series Panel Mount Micro D Connector Socket, 25 Way, 3A

Manufacturer:
Manufacturer Part No:
MWDM2L-25SS
Enrgtech Part No:
ET14037699
Warranty:
Manufacturer
£ 62.55
Checking for live stock
Current Rating:
3A
Dimensions:
30.01 x 7.82 x 15.98mm
Mounting Type:
Panel Mount
Series:
MWDM
Body Orientation:
Straight
Termination Method:
Solder
Length:
30.01mm
D Connector Type:
Micro-D
Housing Material:
Aluminium
Width:
7.82mm
Depth:
15.98mm
Contact Plating:
Gold over Nickel
Gender:
Female
Number of Contacts:
25
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Copper Alloy
pdf icon
Datasheet(Technical Reference)
