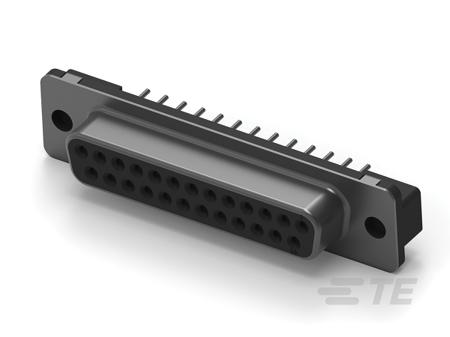

Amplimite HD-20 25 Way Through Hole D-sub Connector Socket, 2.74mm Pitch

Number of Contacts:

25

Gender:

Female

Body Orientation:

Straight

Mounting Type:

Through Hole

Pitch:

2.74mm

D Connector Type:

Standard D-Sub

Termination Method:

Solder

Current Rating:

6.0A

Housing Material:

Polyester

Length:

53.09mm

Width:

12.16mm

Depth:

12.55mm

Dimensions:

53.09 x 12.16 x 12.55mm

Contact Plating:

Nickel

Series:

Amplimite HD-20

Contact Material:

Phosphor Bronze

Maximum Operating Temperature:

+105°C

Minimum Operating Temperature:

-55.0°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1920330&DisplayLogo=False
