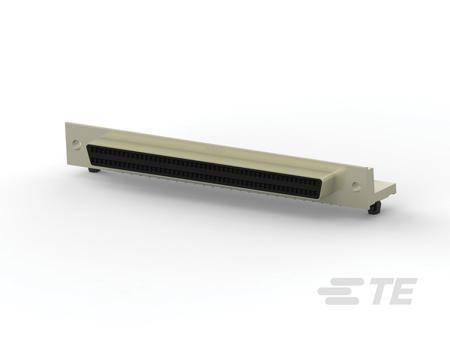

Amplimite 0.50 100 Way Right Angle Through Hole D-sub Connector Socket, 1.27mm Pitch

Number of Contacts:

100

Gender:

Female

Body Orientation:

Right Angle

Mounting Type:

Through Hole

Pitch:

1.27mm

D Connector Type:

Standard D-Sub

Termination Method:

Solder

Current Rating:

1A

Housing Material:

Thermoplastic

Length:

84.2mm

Width:

16.67mm

Depth:

10.31mm

Series:

Amplimite 0.50

Dimensions:

84.2 x 16.67 x 10.31mm

Contact Plating:

Tin

Contact Material:

Phosphor Bronze

Maximum Operating Temperature:

+105°C

Minimum Operating Temperature:

-55.0°C
