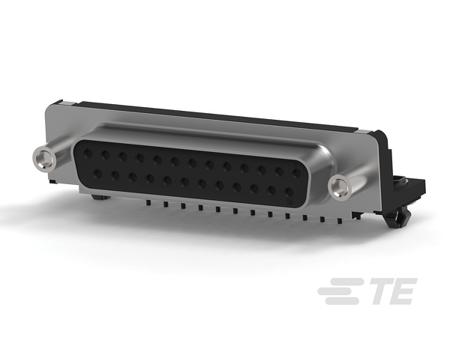

Amplimite HD-20 25 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch

Number of Contacts:

25

Gender:

Female

Body Orientation:

Right Angle

Mounting Type:

Through Hole

Pitch:

2.77mm

D Connector Type:

Standard D-Sub

Termination Method:

Solder

Current Rating:

6.0A

Housing Material:

Thermoplastic

Length:

2.08in

Width:

0.74in

Depth:

0.49in

Dimensions:

2.08 x 0.74 x 0.49in

Series:

Amplimite HD-20

Contact Plating:

Tin

Contact Material:

Phosphor Bronze

Minimum Operating Temperature:

-55.0°C

Maximum Operating Temperature:

+105°C
