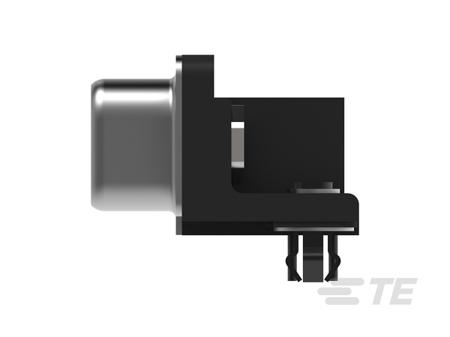

9 Way Right Angle Through Hole D-sub Connector Plug, 2.74mm Pitch

Number of Contacts:

9

Gender:

Male

Body Orientation:

Right Angle

Mounting Type:

Through Hole

Pitch:

2.74mm

D Connector Type:

Standard D-Sub

Termination Method:

Solder

Current Rating:

6.0A

Housing Material:

Glass Filled Nylon/Glass Filled Polyester

Length:

30.8mm

Width:

18.62mm

Depth:

12.55mm

Contact Material:

Brass

Contact Plating:

Nickel

Dimensions:

30.8 x 18.62 x 12.55mm

Minimum Operating Temperature:

-55.0°C

Maximum Operating Temperature:

+105°C
