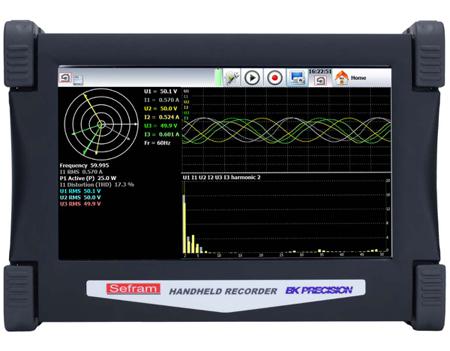

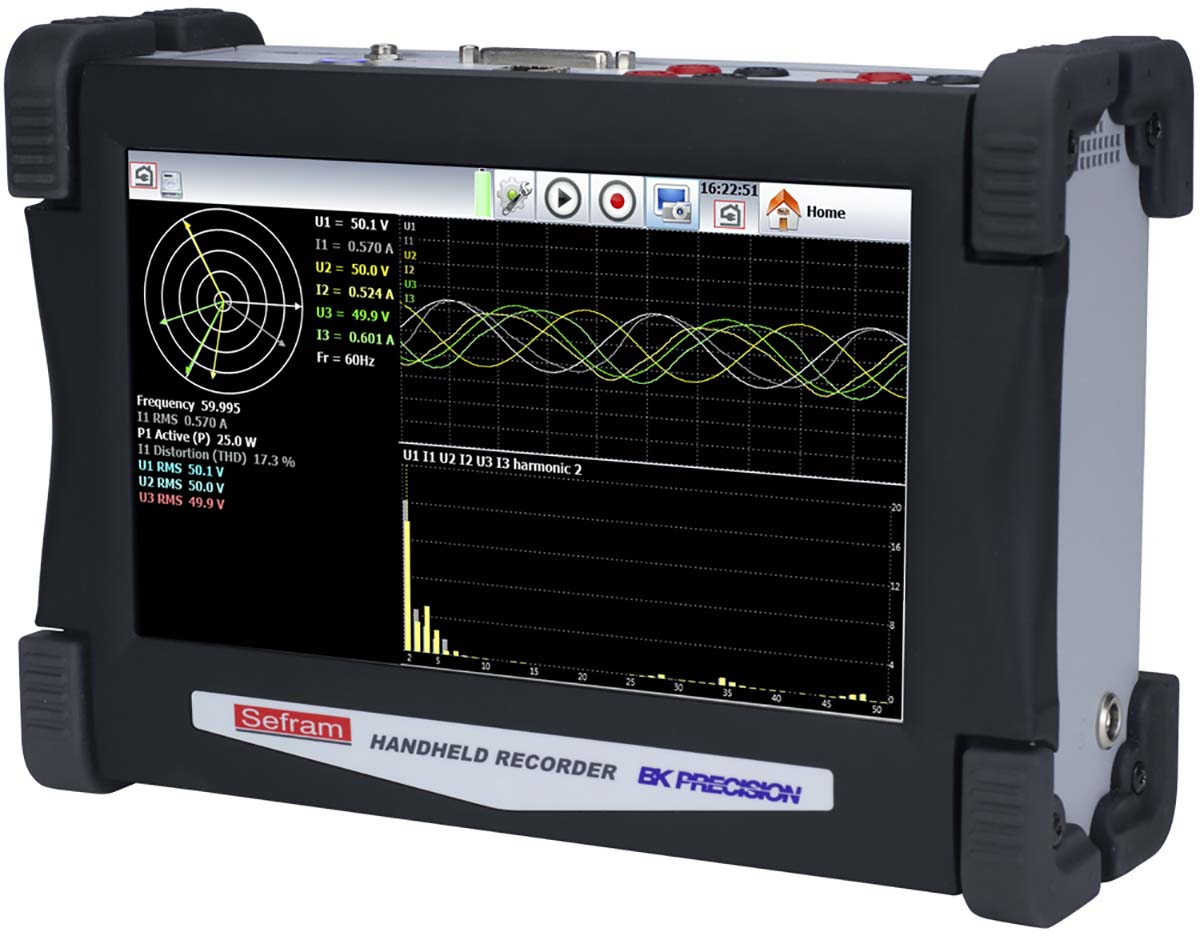

Sefram Data Logger The Sefram 4-channel general-purpose and multifunction recorder is designed for ease of use, simple transfer of records and a wide range of data recording applications. It is equipped with a panoramic 10inch TFT panoramic touch screen user interface that becomes absolutely interactive. The results of measurements (graphs, numerical values) can be recorded directly to internal memory or to a USB stick. Using Sefram software, users can easily transfer records to a computer.

Supplied with
Lithium-ion 10.8V 6.5Ah battery, set of red and black Accessories (cable + alligator clip + banana plug), carrying case, mains adapter, manual (on CD-ROM) Features and Benefits 16 logical channels
14-bit resolution
Max sampling rate is 1ms (1kHz)
100kHz bandwidth
32Gb internal hard disk
32 word memory

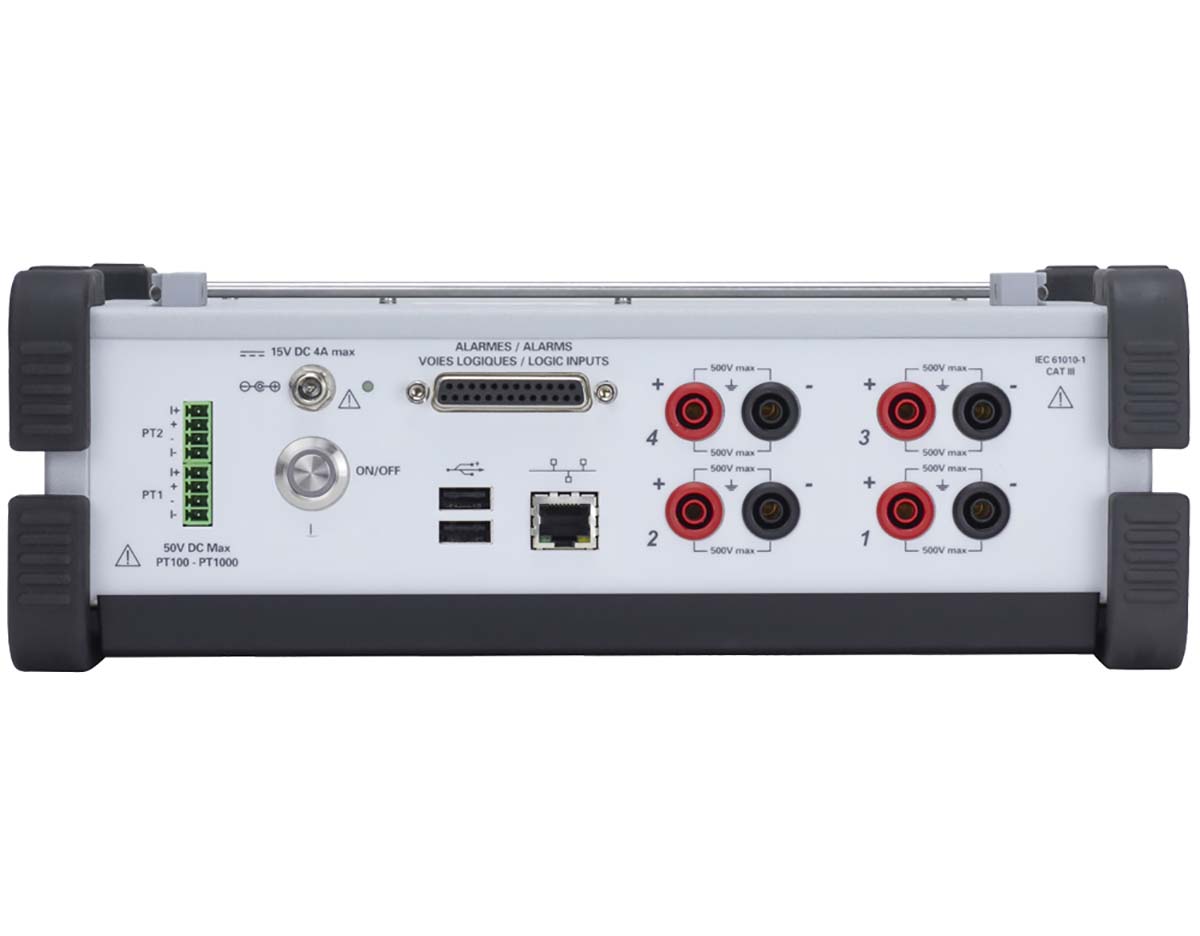

Interfaces 2 x USB, Ethernet
Lithium-ion battery Applications Maintenance/failure diagnostic on electrical systems
Voltage, current, temperature recording and monitoring
Power analysis for single phase, dual phase and three phase systems Certifications IEC 1010
CAT III 600V Options 2320453 : WiFi option
7918071 : External 16 isolated logical channel adapter
1259523 : Special cord for logic inputs (banana)
